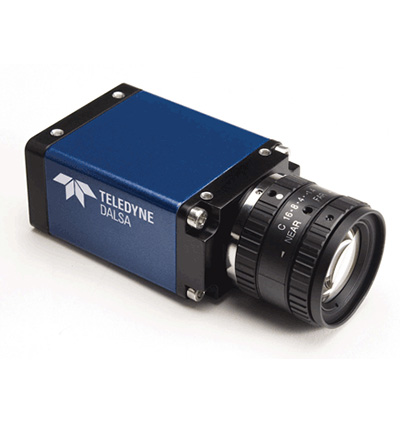

Dalsa C1600 Camera
Part Number(s): CR-GEN0-C160x
Get a Quote for the Dalsa C1600
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
C1600-1/1.8
C1600-1/1.8CS
C1600-1/1.8CS-RA
C1600-1/1.8-RA
The Genie C1600 uses a Sony RGB CCD with a resolution of 1600 x 1200.
Operating at 12 frames per second at full resolution, the Dalsa Genie C1600 camera takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100m. Like all Genie cameras, the C1600 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.
FEATURES:
- Active resolution of 1600 x 1200
- 24-bits Pixel Depth RGB
- Horizontal and Vertical Binning
- Engineered with DALSA's Trigger-to-Image Reliability framework
- GigE Vision compliant
- Engineered to accommodate industrial style, screw mount, RJ-45 connectors
- C Mount
Download Product PDF:
TECHNICAL INFORMATION:
- Imager Format: Full frame interline CCD area scan with square pixel (1/1.8 inch diagonal)
- Sensor: ICX274AQ
- Resolution: 1600 x 1200 pixels
- Minimum Frame Rate: (free-running) 0.1 fps (one frame every 10 seconds)
- Maximum Frame Rate: (free-running) 15 fps
- Minimum Exposure: 100µs
- Maximum Exposure: 4 seconds
- Internal Trigger to Start of Exposure: TBA
- Pixel Size: 4.40µm (H) x 4.40µm (V)
- Pixel Format: 3x8-bit (RGB primary color mosaic filters on chip)
- C Mount
Quick Info for the Dalsa C1600-1/1.8
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie |
FPS: | 15 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | 1.9 MP |
Scanning Mode: | - |
Signal System: | Color |
Technology: | GigE Cameras |
Quick Info for the Dalsa C1600-1/1.8CS
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie |
FPS: | 15 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | 1.9 MP |
Scanning Mode: | - |
Signal System: | Color |
Technology: | GigE Cameras |
Quick Info for the Dalsa C1600-1/1.8CS-RA
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie |
FPS: | 15 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | 1.9 MP |
Scanning Mode: | - |
Signal System: | Color |
Technology: | GigE Cameras |
Quick Info for the Dalsa C1600-1/1.8-RA
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie |
FPS: | 15 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | 1.9 MP |
Scanning Mode: | - |
Signal System: | Color |
Technology: | GigE Cameras |
