Dalsa HC1024-2/3 Camera

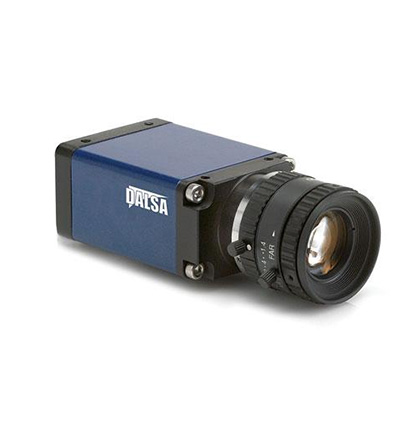

Dalsa Genie HC1024-2/3 Camera with C Lens Mount

The Genie HC1024 offers unprecedented high-speed image acquisition with uncompromised signal-to-noise ratio, significantly optimizing the opportunity for increased yield. Teledyne DALSA’s proprietary sensor technology allows for image capture rates of 117 fps in 1024 x 768 resolution while maintaining exceptional image quality. The Genie HC1024’s gigabit Ethernet interface takes full advantage of this Genie’s high frame rate by transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Genies, the HC1024 is based on the AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES

• Resolution: 1024 x 768
• Total Data Rate: 92 MB/s
• Max. Frame Rate: 117 fps
• Pixel Size: 7.4 µm
• Output Format: GigE Vision
• Size: 44 x 29 x 67 mm
• Mass: ~115 g
• C Lens Mount

Download Product PDF:

• Dalsa HC1024-2/3 Camera

TECHNICAL INFORMATION:

• Active Resolution: 1024 x 768
• Frame Rate: 117 fps
• Pixel Size: 7.4 µm
• Data Format: 8 bits
• Exposure Control: Programmable, or via External Trigger
• Dynamic Range: 57 dB
• Nominal Gain Range: 0 dB to +12 dB
• Output: Gigabit Ethernet, also supports 100 Mbps
• I/O Ports: 2 opto-isolated input, 2 opto-isolated output
• Lens Mount: C
• Size: 44 mm x 29 mm x 67 mm (including lens adapter)
• Mass: ~115 g (without lens)
• Operating Temp: 0°–45°C
• Power Supply: 12 to 24 V
• Power Dissipation: 4W
• Data Connector: Standard or Screw mount RJ-45
• Power and I/O: Hirose 12-Pin
• Software Platform: Teledyne DALSA Sapera LT
• GigE Vision Compliant: Yes
• Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
