Available Variations:

  • HC1400-1

  • HC1400-1CS

  • HC1400-1CS-RA

  • HC1400-1-RA

Dalsa Genie Series HC1400-1 offers unprecedented high speed image acquisition.

The Dalsa Genie HC1400 camera has uncompromised signal-to-noise ratio, significantly optimizing the opportunity for increased yield. DALSA’s proprietary sensor technology allows for image capture rates of 75 fps in 1400 x 1024 resolution while maintaining exceptional image quality. The Genie HC1400’s gigabit Ethernet interface takes full advantage of this Genie’s high frame rate by transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100 m. Like all Genies, the HC1400 is based on the AIA (Automate Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES

  • Resolution: 1400 x 1024
  • Total Data Rate: 92 MB/s
  • Max. Frame Rate: 75 fps
  • Pixel Size: 7.4 µm
  • Output Format: GigE Vision
  • Size : 44 x 29 x 67 mm
  • Mass: ~115 g
  • C Mount

Download Product PDF:

TECHNICAL INFORMATION:

  • Active Resolution: 1400 x 1024
  • Frame Rate: 75 fps
  • Pixel Size: 7.4 µm
  • Data Format: 8 & 10 bits Raw Bayer
  • Exposure Control: Programmable, or via External Trigger
  • Dynamic Range: 48 dB
  • Nominal Gain Range: 0 dB to +12 dB
  • Output: Gigabit Ethernet, also supports 100 Mbps
  • I/O Ports: 2 opto-isolated input, 2 opto-isolated output
  • Lens Mount: C
  • Size: 44 mm x 29 mm x 67 mm (including lens adapter)
  • Mass: ~115 g (without lens)
  • Operating Temp: 0°–45°C
  • Power Supply: 12 V to 24 V
  • Power Dissipation: 4W
  • Data Connector: Standard or Screw mount RJ-45
  • Power and I/O: Hirose 12-Pin
  • Software Platform: DALSA Sapera LT
  • GigE Vision Compliant: Yes
  • Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
  • Part Number: CR-GC00-H140x

Request a Quote

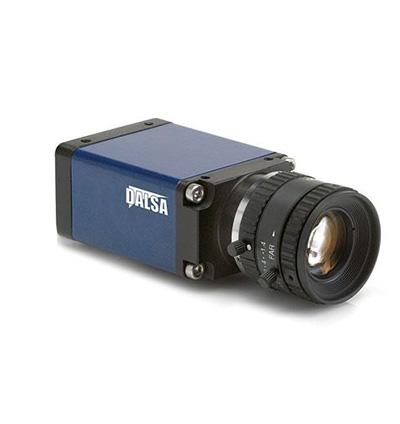

Product image of Dalsa HC1400
Product Photos
Product image of  Dalsa HC1400

Quick Info for the Dalsa HC1400-1

Camera Category: Area Scan
Camera Series: Genie
FPS: 64
Interface: GigE
Manufacturer: Dalsa
Resolutions: 1.4 MP
Scanning Mode: -
Signal System: Color

Quick Info for the Dalsa HC1400-1CS

Camera Category: Area Scan
Camera Series: Genie
FPS: 64
Interface: GigE
Manufacturer: Dalsa
Resolutions: 1.4 MP
Scanning Mode: -
Signal System: Color

Quick Info for the Dalsa HC1400-1CS-RA

Camera Category: Area Scan
Camera Series: Genie
FPS: 64
Interface: GigE
Manufacturer: Dalsa
Resolutions: 1.4 MP
Scanning Mode: -
Signal System: Color

Quick Info for the Dalsa HC1400-1-RA

Camera Category: Area Scan
Camera Series: Genie
FPS: 64
Interface: GigE
Manufacturer: Dalsa
Resolutions: 1.4 MP
Scanning Mode: -
Signal System: Color
