DALSA Genie HC640 offers unprecedented high speed image acquisition

The DALSA Genie HC640 camera area scan color GigE gives you unprecedented high-speed image acquisition and uncompromised signal-to-noise-ratio perfect for your inspection, industrial metrology, and intelligent traffic systems applications. Featuring Teledyne DALSA’s proprietary sensor technology, the Genie HC640 delivers exceptional image quality in VGA 640 x 480 with up to 300 fps and pixel size of 7.4 µm. Higher frame rates are available in partial scan mode.

Transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100m, the Genie HC640 takes full advantage of its high frame rate to deliver high quality images. Engineered to accommodate an industrial environment, the DALSA Genie HC640 GigE camera has a Ruggedize, screw mount, RJ-45 connector. Based on the AIA (Automated Imaging Association) GigE Vision Standard, the Genie HC640 can be linked directly to your PC.

FEATURES:

  • GigE Vision compliant
  • Area scan color
  • Dimensions: 44 x 29 x 67 mm
  • Resolution: 640 x 480
  • Total Data Rate: 92 MB/s
  • Max. Frame Rate: 300 fps in full resolution
  • Higher frame rates available in partial scan mode
  • Pixel Size: 7.4 µm
  • Number of Camera Taps: 1

For help with your DALSA GigE camera selection, please call (888) 732-6474.

Download Product PDF:

TECHNICAL INFORMATION:

  • Active Resolution: 640 x 480
  • Frame Rate: 300 fps
  • Pixel Size: 7.4 µm
  • Data Format: 8-bits Raw Bayer
  • Exposure Control: Programmable, or via External Trigger
  • Dynamic Range: 48 dB
  • Nominal Gain Range: 0 dB to +12 dB
  • Output: Gigabit Ethernet, also supports 100 Mbps
  • I/O Ports: 2 opto-isolated input, 2 opto-isolated output
  • Lens Mount: C or CS-mount / Right-Angle option is also available
  • Size: 44 mm x 29 mm x 67 mm (including lens adapter)
  • Mass: ~115 g (without lens)
  • Operating Temp: 0°–45°C
  • Power Supply: 12 V
  • Power Dissipation: 4W
  • Data Connector: Standard or Screw mount RJ-45
  • Power and I/O: Hirose 12-Pin
  • Software Platform: DALSA Sapera LT
  • GigE Vision Compliant: Yes
  • Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
  • Part Number: CR-GEN0-H640x

Request a Quote

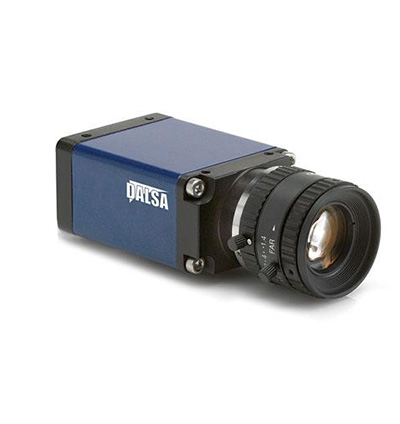

Product image of Dalsa HC640
Product Photos
Product image of  Dalsa HC640

Quick Info for the Dalsa HC640

Camera Category: Area Scan
Camera Series: Genie
FPS: 300
Interface: GigE
Manufacturer: Dalsa
Resolutions: Under 1 MP
Scanning Mode: Progressive Scan
Signal System: Color
