Dalsa Genie HM640 Camera

The Dalsa Genie HM640 offers unprecedented high-speed image acquisition with uncompromised signal-to-noise ratio, significantly optimizing the opportunity for increased yield. DALSA's proprietary sensor technology allows for image capture rates of 300 fps in VGA resolution while maintaining exceptional image quality. The Genie HM640's gigabit Ethernet interface takes full advantage of this Genie's high frame rate by transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100m. Like all Genie cameras, the HM640 is based on the AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES:

  • Active resolution of 640x480 at 300 fps
  • 8-bits Pixel Depth
  • Horizontal and Vertical Binning
  • Engineered with DALSA's Trigger-to-Image Reliability framework
  • GigE Vision compliant
  • Uses standard PC and server Ethernet ports & hardware
  • Facilitates cable lenghts up to 100m (CAT-5e or CAT-6)
  • Simplified set-up with field proven Sapera Essential software
  • Engineered to accommodate industrial style, screw mount, RJ-45 connectors
  • Small compact form factor

Download Product PDF:

TECHNICAL INFORMATION:

  • Active Resolution: 640 x 480
  • Frame Rate: 300 fps
  • Pixel Size: 7.4 µm
  • Data Format: 8-bits
  • Exposure Control: Programmable, or via External Trigger
  • Dynamic Range: 48 dB
  • Nominal Gain Range: 0 dB to +12 dB
  • Output: Gigabit Ethernet, also supports 100 Mbps
  • I/O Ports: 2 opto-isolated input, 2 opto-isolated output
  • Lens Mount: C or CS-mount
  • Size: 44 mm x 29 mm x 67 mm (including lens adapter)
  • Mass: ~115 g (without lens)
  • Operating Temp: 0°–45°C
  • Power Supply: 12 V
  • Power Dissipation: 4W
  • Data Connector: Standard or Screw mount RJ-45
  • Power and I/O: Hirose 12-Pin
  • Software Platform: DALSA Sapera LT
  • GigE Vision Compliant: Yes
  • Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
  • Part Number: CR-GEN0-H640x

Request a Quote

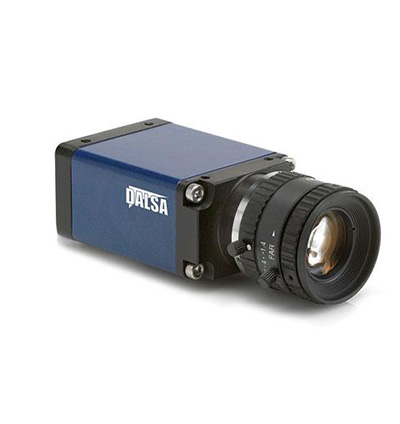

Product image of Dalsa HM640
Product Photos
Product image of  Dalsa HM640

Quick Info for the Dalsa HM640

Camera Category: Area Scan
Camera Series: Genie
FPS: 300
Interface: GigE
Manufacturer: Dalsa
Resolutions: Under 1 MP
Scanning Mode: Progressive Scan
Signal System: Monochrome
