Available Variations:

  • M1400-1/2

  • M1400-1/2CS

The Dalsa Genie M1400 Camera uses a Sony CCD, monochrome sensor with a resolution of 1360 x 1024

Operating at 15 frames per second at full resolution, the Dalsa Genie M1400 camera takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100m. Like all Genie cameras, the M1400 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.

FEATURES:

  • Active resolution of 1360 x 1024
  • 8 and 10-bits Pixel Depth
  • High frame rates with vertical windowing, up to 81 fps
  • Horizontal and Vertical Binning
  • Engineered with DALSA's Trigger-to-Image Reliability framework
  • GigE Vision compliant
  • Engineered to accommodate industrial style, screw mount, RJ-45 connectors

Download Product PDF:

TECHNICAL INFORMATION:

  • Active Resolution: 1360 x 1024
  • Frame Rate: 15 fps
  • Pixel Size: 4.65 µm
  • Data Format: 8 & 10 bits
  • Exposure Control: Programmable, or via External Trigger
  • Dynamic Range: 57 dB
  • Nominal Gain Range: -6 dB to +12 dB
  • Output: Gigabit Ethernet, also supports 100 Mbps
  • I/O Ports: 2 opto-isolated input, 2 opto-isolated output
  • Lens Mount: C
  • Size: 44 mm x 29 mm x 67 mm (including lens adapter)
  • Mass: ~115 g (without lens)
  • Operating Temp: 0°–45°C
  • Power Supply: 12 V
  • Power Dissipation: 4W
  • Data Connector: Standard or Screw mount RJ-45
  • Power and I/O: Hirose 12-Pin
  • Software Platform: DALSA Sapera LT
  • GigE Vision Compliant: Yes
  • Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
  • Part Number: CR-GEN0-M140x

Request a Quote

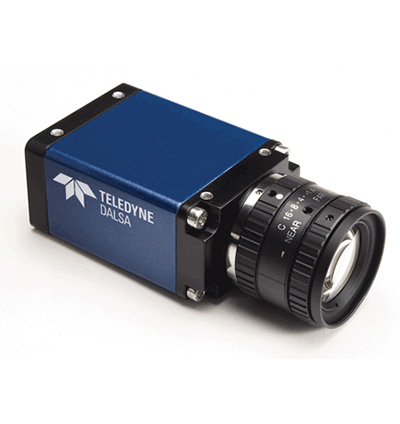

Product image of Dalsa M1400-1/2
Product Photos
Product image of  Dalsa M1400-1/2

Quick Info for the Dalsa M1400-1/2

Camera Category: Area Scan
Camera Series: Genie
FPS: 15
Interface: GigE
Manufacturer: Dalsa
Resolutions: 1.4 MP
Scanning Mode: Area Scan
Signal System: Monochrome

Quick Info for the Dalsa M1400-1/2CS

Camera Category: Area Scan
Camera Series: Genie
FPS: 15
Interface: GigE
Manufacturer: Dalsa
Resolutions: 1.4 MP
Scanning Mode: Area Scan
Signal System: Monochrome
