Dalsa M640-1/3 Camera
Part Number(s): CR-GEN3-M640x
Get a Quote for the Dalsa M640-1/3
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
M640-1/3
M640-1/3CS

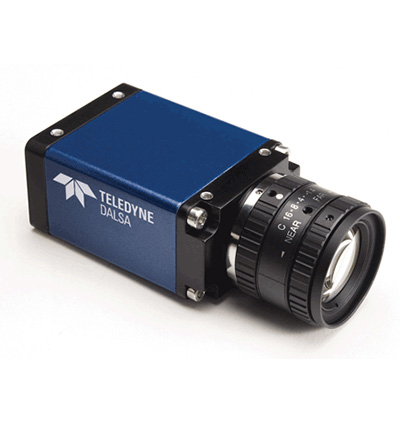

The Dalsa Genie M640 Camera uses a Sony CCD, monochrome sensor with a resolution of 640 x 480
Operating at 64 frames per second at full resolution, the Dalsa Genie M640 camera takes advantage of gigabit Ethernet technology, transmitting data over standard CAT-5e and CAT-6 cables to distances of up to 100m. Like all Genie cameras, the M640 is based on AIA (Automated Imaging Association) GigE Vision Standard to directly link the camera to a PC.
FEATURES:
- Active resolution of 640 x 480
- 8 and 10-bits Pixel Depth
- High frame rates with vertical windowing, up to 590 fps
- Horizontal and Vertical Binning
- Engineered with DALSA's Trigger-to-Image Reliability framework
- GigE Vision compliant
- Available in 1/3” or ½” sensor version
- Engineered to accommodate industrial style, screw mount, RJ-45 connectors
Download Product PDF:
TECHNICAL INFORMATION:
- Active Resolution: 640 x 480
- Frame Rate: 64 fps
- Pixel Size: 7.4 µm
- Data Format: 8 & 10 bits
- Exposure Control: Programmable, or via External Trigger
- Dynamic Range: 57 dB
- Nominal Gain Range: -6 dB to +12 dB
- Output: Gigabit Ethernet, also supports 100 Mbps
- I/O Ports: 2 opto-isolated input, 2 opto-isolated output
- Lens Mount: C
- Size: 44 mm x 29 mm x 67 mm (including lens adapter)
- Mass: ~115 g (without lens)
- Operating Temp: 0°–45°C
- Power Supply: 12 V
- Power Dissipation: 4W
- Data Connector: Standard or Screw mount RJ-45
- Power and I/O: Hirose 12-Pin
- Software Platform: DALSA Sapera LT
- GigE Vision Compliant: Yes
- Regulatory Compliance: FCC Class A, CE, RoHs 2002/95/EC
- Part Number: CR-GEN0-M640x
Quick Info for the Dalsa M640-1/3
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie |
FPS: | 64 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | Under 1 MP |
Scanning Mode: | Area Scan |
Signal System: | Monochrome |
Technology: | GigE Cameras |
Quick Info for the Dalsa M640-1/3CS
Camera Category: | Area Scan |
---|---|
Camera Series: | Genie |
FPS: | 64 |
Interface: | GigE |
Manufacturer: | Dalsa |
Resolutions: | Under 1 MP |
Scanning Mode: | Area Scan |
Signal System: | Monochrome |
Technology: | GigE Cameras |
