Dalsa 32k Super Resolution CLHS Camera

Part Number(s): HL-HM-32k40S-00-R

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Dalsa 32k Super Resolution CLHS

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

Industry’s First 32k TDI Camera with Improved Detectability

Based on Teledyne DALSA’s industry-leading CMOS TDI technology, the new Linea HS family o ers advanced and unique TDI products. The Linea HS 32k camera is capable of capturing 32,768-pixel data using patent-pending pixel o set technology. This enables users to significantly improve subpixel defect detectability while using existing optical lenses and maintaining high sensitivity. The camera comes with a high-speed fiber-optic interface that delivers up to 8.4 GByte/sec data in a single cable and long cable length.

The 32k camera uses two 16k/5 μm TDI arrays with ½ pixel o set. Two 16k/5 μm image data are captured and then reconstructed to achieve a super-resolution image of 32k/2.5 μm in real-time. This significantly enhances detectability for subpixel defects. One advantage of the pixel o set technology is that existing 16k/5 μm lenses can be used without sacrifice in responsivity and MTF with smaller physical pixel size.

Download Product PDF:


  • Resolution: 32,768 x 64 pixels
  • Line rate: 150 kHz maximum*
  • Pixel Size: 5 x 5 μm / 2.5 x 2.5 μm
  • Bit depth: 8 bit
  • Output: Monochrome
  • Lens Mounts: M90 x 1
  • Responsivity: see graph
  • Nominal Gain Range: 1x to 10x
  • Size: 97 x 140.5 x 78.6 mm
  • Mass: 1200 g
  • Operating Temp: 0 to +60 °C (frontplate)
  • Power Supply: +12 to +24 VDC
  • Power Dissipation: 28 W
  • Data and Control: Camera Link HS CX4
  • GPIO: Hirose 12-pin
  • Regulatory Compliance: CE, FCC, RoHS

* Due to bandwidth limitation of the FG, max. line rate is 100 kHz

Request a Quote

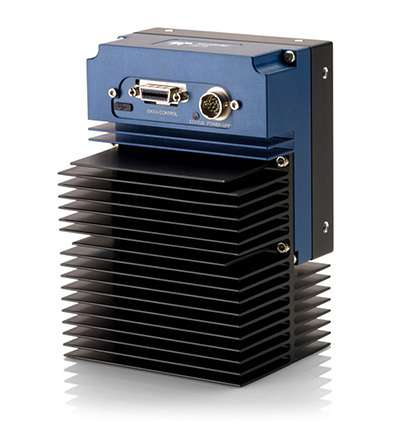

Product image of Dalsa 32k Super Resolution CLHS

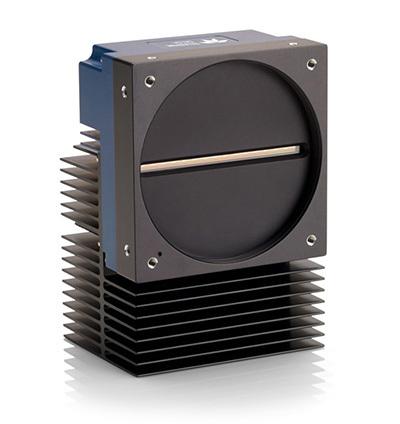

Product image of Dalsa 32k Super Resolution CLHS
Product Photos

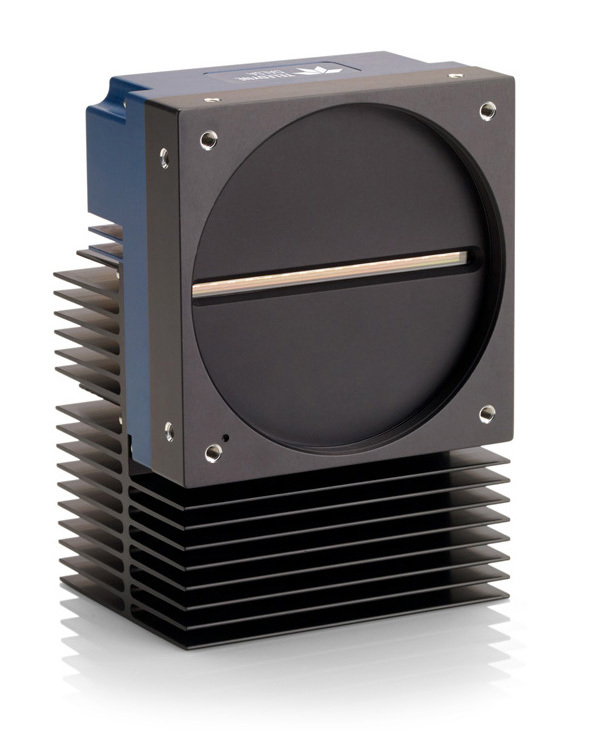

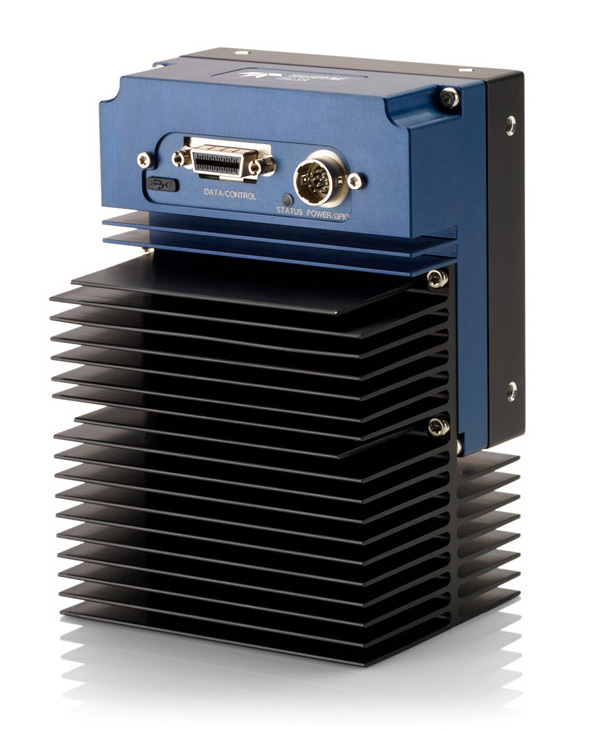

Product image of  Dalsa 32k Super Resolution CLHS Product image of  Dalsa 32k Super Resolution CLHS

Quick Info for the Dalsa HL-HM-32k15S-00-R

Camera Category: Line Scan
Camera Series: HS Linea
FPS: -
Interface: Camera Link HS
Manufacturer: Dalsa
Resolutions: 32768 x 64
Scanning Mode: Line Scan
Signal System: Monochrome
Technology: Camera Link HS Cameras
