Teledyne DALSA is pleased to announce the release of the Linea ML 8k Color Camera Link HS (CLHS) camera.

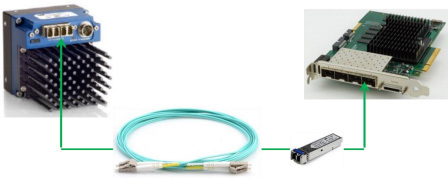

The new Linea ML 8k Colour CLHS model uses Teledyne DALSA’s latest CMOS 8k trilinear sensor with a 5x5 μm pixel and delivers a maximum line rate of 93 kHz x 3 using CLHS fibreoptic interface. The Linea ML™ trilinear CMOS 8K and 16K color cameras exceed the requirements of demanding color imaging applications with industry leading performance. Based on Teledyne DALSA’s unique CMOS line scan technology, the Linea ML trilinear cameras deliver superb color in a compact footprint with a high-speed fiber-optic interface.



Download Product PDF:

TECHNICAL INFORMATION:

Resolution 8,192 x 3 pixels
Line Rate 300 kHz maximum
Pixel Size 5 μm x 5 µm
Data Format 8-bit
Output RGB color
Lens Mount M58 x 0.75
Responsivity See graph
Dynamic Range > 60 dB
Nominal Gain Range 1x to 10x
Size 76 mm x 76 mm x 85 mm
Mass < 500 g
Operating Temp 0 °C to +65 °C (front plate)
Power +12 V to +24 V DC, Hirose 12-pin
Power Dissipation 16 W
Control & Data Camera Link HS, LC
GPIO Direction and independent line control
Regulatory Compliance CE, FCC, and RoHS





Request a Quote

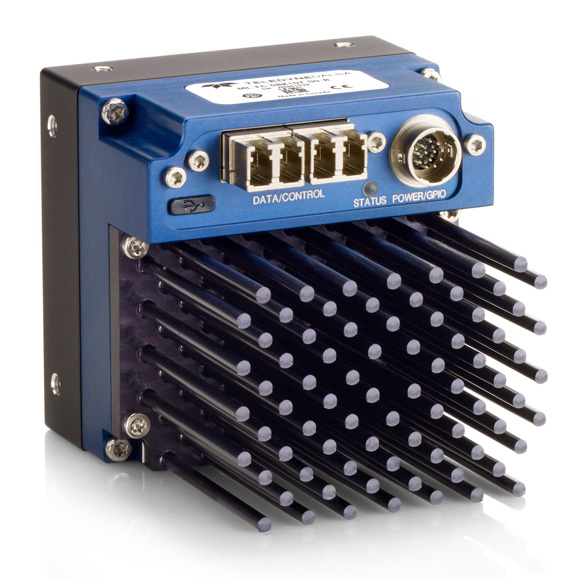

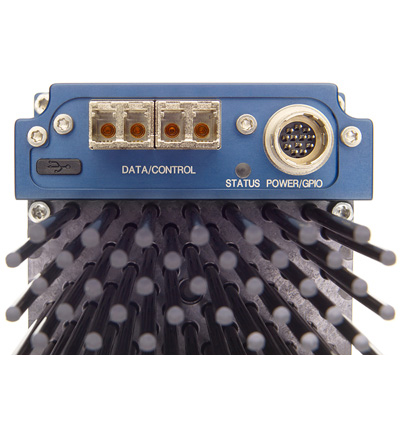

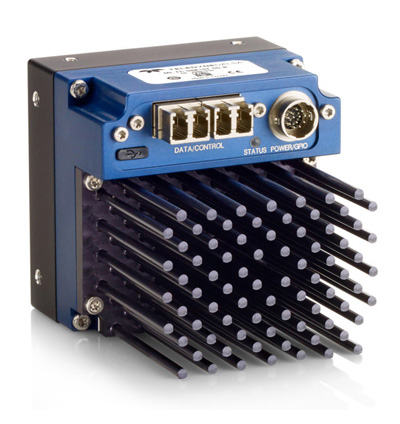

Product image of Dalsa Linea ML 8K CLHS
Product image of Dalsa Linea ML 8K CLHS
Product image of Dalsa Linea ML 8K CLHS
Product Photos
Product image of  Dalsa Linea ML 8K CLHS Product image of  Dalsa Linea ML 8K CLHS Product image of  Dalsa Linea ML 8K CLHS

Quick Info for the Dalsa Linea ML 8K-C

Camera Category: Line Scan
Camera Series: Linea ML
FPS: -
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 8,192
Scanning Mode: Line Scan
Signal System: Color
