Dalsa Linea ML Mono 16k Fiber 143 kHz Camera

Part Number(s): ML-FM-16K15A

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Dalsa Linea ML Mono 16k Fiber 143 kHz

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Performance and Value

The Linea ML brings leading edge CMOS technology that is faster than ever, with affordable multiline architecture that enables the newest, most powerful inspection techniques including HDR, color and multispectral analysis, and multi-field imaging (single-pass bright/darkfield). With a native fiber optic interface for easy, low-cost long cabling, the Linea ML opens new horizons in inspection.

Expand your vision capabilities

The Linea ML was thoughtfully designed to enable economical variations in functionality, like HDR, and multiple spectral bands—color, color plus mono, color plus NIR, and multi-field.

Maximum line rate is 300 kHz aggregate: 300 kHz in mono, 3 x 100 kHz in RGB, or 4 x 75 kHz in RGB+NIR.

Detect defects on and beneath the surface

The Linea ML 8k multispectral provides spectrally independent RGB and NIR outputs with minimal spectral crosstalk. This makes it uniquely capable of handling some of the most challenging inspection applications by accurately detecting defects both on and beneath the surface of a wide variety of materials and products. For inspection applications such as banknotes and other high security prints, the Linea ML 8k multispectral accurately detects security inks printed on the paper that reflect near infrared (NIR) light. In other applications like semiconductor wafer and printed circuit board (PCB) inspection, the camera easily reveals defects below the surface penetrated by the NIR light.

CLHS Native Fiber Interface

The Linea ML gives you better sensitivity, lower noise, and higher line rates up to 300 kHz via a CLHS interface. Linea ML is our first camera with native fiber optic connectors, which lets you take advantage of low-cost fiber for long cables and immunity to electrical interference.

TECHNICAL INFORMATION:

  • ~ 16 k
  • 8 bit, 12 bit
  • 0—65 °C
  • 72 dB
  • M90x1
  • +12 V to +24 V DC, Hirose 12-pin
  • 97 x 140.5 x 78.6 mm
  • 1200 g

Request a Quote

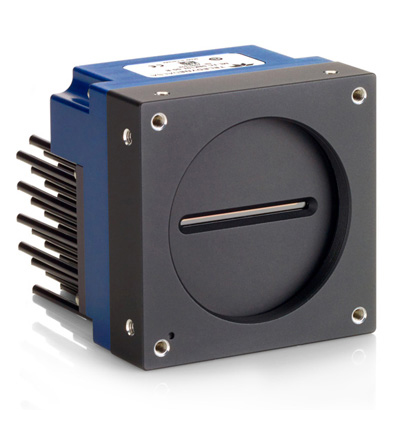

Product image of Dalsa Linea ML Mono 16k Fiber 143 kHz
Product Photos
Product image of  Dalsa Linea ML Mono 16k Fiber 143 kHz

Quick Info for the Dalsa Mono 16k Fiber 143 kHz

Camera Category: Line Scan
Camera Series: Linea ML
Interface: Camera Link HS
Manufacturer: Dalsa
Resolutions: 16384 x 1
Scanning Mode: Line Scan
Signal System: Monochrome
