Dalsa Linea Mono 4k Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Dalsa Linea Mono 4k

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Available Variations:

  • Linea Mono 4k CL

  • Linea Mono 4k GigE

Dalsa Linea Mono 4k is a compact, light weight and robust CMOS camera

The new Linea™ family of line scan cameras provides the uncompromising performance and rich feature-set found in Teledyne DALSA’s high-end line scan cameras at an unprecedented price point.

Based on the most advanced CMOS line scan technology Linea employs a single line 7 µm x 7 µm pixel array at an 80 kHz line rate. With excellent sensitivity and speed, Linea surpasses the requirements of demanding applications—such as materials grading and inspection, transportation safety, and general purpose machine vision.

Linea is a compact, light weight and robust camera with many attractive features, including full-fledged flat-field correction, multiple ROI, smart triggers through programmable GPIO, multiple user configuration sets, and calibration coefficients for various lighting conditions.

GenICam™ compliant Linea is easy to set up and integrate using a GUI, such as Teledyne DALSA’s Sapera™ camera configuration utility Camexpert, or an ASCII interface using three letter commands.

Download Product PDF:

TECHNICAL INFORMATION:

  • High speed, high sensitivity
  • GenICam compliant, easy to set up integrate and use through user friendly Sapera Camexpert configuration GUI, or three letter commands.
  • Programmable camera triggering, signalling and synchronization
  • Full-fledged flat field correction
  • Multiple user coefficient sets and multiple FFC calibration sets
  • Compact, robust and light weight
  • Choices of C-mount or F-mount lens adapters
  • Wide supply voltage range from 5V to 24V
  • Multiple region of interest (ROI) and binning features

Request a Quote

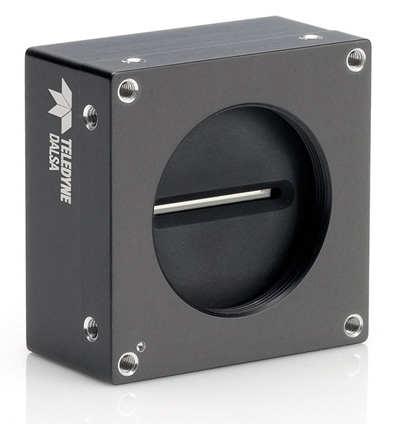

Product image of Dalsa Linea Mono 4k
Product Photos
Product image of  Dalsa Linea Mono 4k

Quick Info for the Dalsa Linea Mono 4k CL

Camera Category: Line Scan
Camera Series: Linea
FPS: 80kHz
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 4K
Scanning Mode: Line Scan
Signal System: Monochrome

Quick Info for the Dalsa Linea Mono 4k GigE

Camera Category: Line Scan
Camera Series: Linea
FPS: 80kHz
Interface: GigE
Manufacturer: Dalsa
Resolutions: 4K
Scanning Mode: Line Scan
Signal System: Monochrome
