Dalsa Piranha Color 4K Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Dalsa Piranha Color 4K

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Available Variations:

  • Piranha Color 4K, 12khz

  • Piranha Color 4K, 17khz

Piranha Color 4K, 12khz delivers superb color fidelity at the fastest line rates and highest resolutions in the industry

Piranha Color cameras deliver superb color fidelity at the fastest line rates and highest resolutions in the industry. DALSA's RGB trilinear sensor eliminates artifacts associated with prism cameras by placing a separate row of pixels for each color on a single sensor die. DALSA's advanced design minimizes distance between rows (equivalent to three pixels center to center) to minimize image artifacts due to synchronization.

The result is higher quality images at higher speed. With a single power supply and Camera Link interface, the camera is both easy to use and powerful, offering programmable gains and offsets for each color.

If you're dreaming in color, take a look at a Piranha color camera. Dreams do come true.

FEATURES:

  • Color trilinear sensor
  • Highest color line rates in the industry
  • 3 pixel center to center spacing between pixel rows
  • Spatially corrected output
  • Forward and reverse scanning
  • Base or Medium Camera Link
  • Programmable flat field correction and white balancing
  • Programmable gain and offset
  • 8 or 12 bit output
  • Adjustable integration time and line rate
  • Test pattern, line statistics, and camera diagnostics
  • RoHS compliant

Download Product PDF:

TECHNICAL INFORMATION:

  • Resolution: 4096
  • Data Rate: 180 MHz
  • Max. Line/Frame Rate: 12 kHz
  • Pixel Size: 10 µm
  • Data Format: 8, 12 bit
  • Output: Medium Camera Link
  • Lens Mount: F mount or M72 x 0.75
  • Responsivity: - -
  • Dynamic Range: >50
  • Nominal Gain Range: ±10
  • Size: 76 mm x 105 mm x 50 mm
  • Mass: <450g
  • Operating Temp: 0 °C to 50 °C
  • Power Supply: 12 V to 15 V
  • Power Dissipation: 12 W
  • Regulatory Compliance: CE Pending
  • Control: MDR26 Camera Link
  • Data: Shared with control

Request a Quote

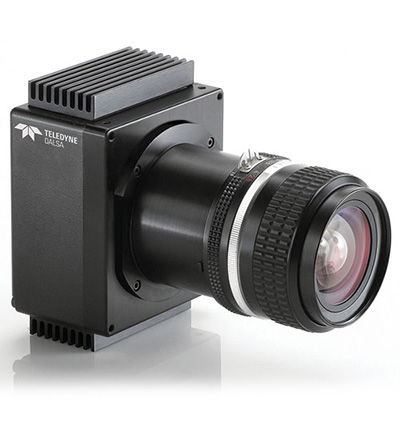

Product image of Dalsa Piranha Color 4K
Product Photos
Product image of  Dalsa Piranha Color 4K

Quick Info for the Dalsa Piranha Color 4K, 12khz

Camera Category: Line Scan
Camera Series: Piranha Color
FPS: 12.1khz
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 4K
Scanning Mode: -
Signal System: Color

Quick Info for the Dalsa Piranha Color 4K, 17khz

Camera Category: Line Scan
Camera Series: Piranha Color
FPS: 17.6khz
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 4K
Scanning Mode: -
Signal System: Color
