Dalsa Piranha ES 12k Camera

Part Number(s): ES-S0-12K40

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Dalsa Piranha ES 12k

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

12k resolution, 1.08 gigapixels per second throughput, and a fast 90 kHz line rate.

The Piranha ES 12k extended sensitivity camera heralds a breakthrough in TDI digital imaging technology. With a maximum line rate of 90 kHz, a throughput of 1.08 gigapixels per second, and 12,000 pixel resolution, the Piranha ES 12k camera provides optimal system performance in a compact form. Built applications which need extreme resolution and throughput but don't need the full 256 stages of sensitivity in our Piranha HS, the ES model delivers cost effective high performance.

Using Teledyne DALSA's new interface technology, this ES 12k camera joins our other maximum performance products capable of transmitting over 1 gigapixel throughput.

All models are capable of bidirectional operation with 64 TDI stages, while preventing overexposure with antiblooming features. Camera configuration is flexible and all software is controllable.

If you need maximum performance in low light, you need to look at a Piranha ES.

The HSLink interface is a new machine vision connectivity interface pioneered by Teledyne DALSA. HSLink is designed specifically to meet the needs of all machine vision applications and therefore carries image data, configuration data and low jitter, real time triggering signals over a simple network topology supporting cameras, intermediate devices and frame grabbers. The interface has taken the key strengths of Camera Link, and added new features and functions. HSLink delivers scalable bandwidth of 300 to 6000 Mbytes/s, 1x to 20x configurations while using globally available, off-theshelf components.

Download Product PDF:


Feature Highlights

  • 12000 pixels
  • 64 TDI stages
  • Max 90 kHz line rate
  • 1080 megapixels/second
  • Responsivity 75 DN/(nJ/cm²) 0 dB
  • Bidirectional
  • Antiblooming
  • HSLink interface


  • Selectable area mode of operation for ease of alignment
  • Up to four sets of flat field correction coefficients
  • Mirroring and forward/reverse control
  • Flat field corrections

Request a Quote

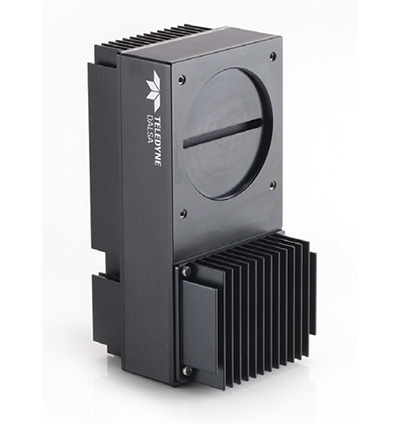

Product image of Dalsa Piranha ES 12k
Product Photos

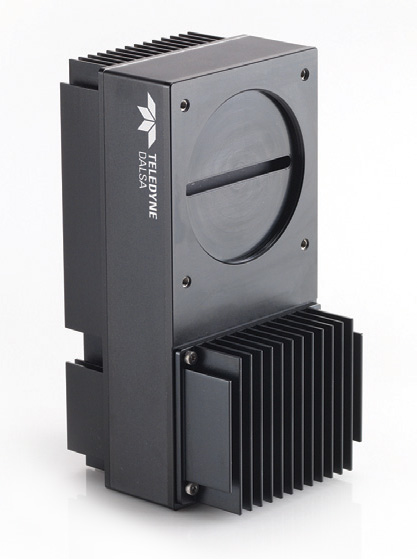

Product image of  Dalsa Piranha ES 12k

Quick Info for the Dalsa Piranha ES 12k

Camera Category: Line Scan
Camera Series: Piranha ES
FPS: 90khz
Interface: Camera Link HS
Manufacturer: Dalsa
Resolutions: 12K
Scanning Mode: Line Scan
Signal System: Digital Monochrome
Technology: Camera Link HS Cameras
