Dalsa Piranha ES 4k Camera
Part Number(s): ES-82-04K80, ES-80-04K40
Get a Quote for the Dalsa Piranha ES 4k
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
Piranha ES 4k 68 kHz
Piranha ES 4k-110 kHz

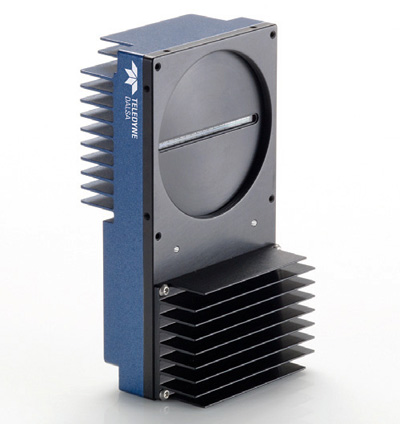

The Piranha ES camera family represents Teledyne DALSA's latest generation of high sensitivity, TDI based cameras
With maximum line rates of 68.6 kHz/110 kHz and throughputs up to 320MHz/640 MHz, the Piranha ES ES-82-04Kx0 provides the fastest speed available in a TDI camera. Camera alignment is also made easier with the selectable area mode of operation.
Camera configuration is extremely flexible and the number of Camera Link taps, throughput, and line rate are all software controllable.
The camera is capable of bidirectionality with up to 16 stages/32 stages of selectability, while preventing overexposure with antiblooming.
If you need maximum performance in low light, you need to look at a Piranha ES.
Download Product PDF:
TECHNICAL INFORMATION:
- Line rates up to 68.6 kHz/110 kHz
- Up to 320MHz/640 MHz throughput
- Bidirectional
- Selectable TDI or area mode operation
- Stage selectablity up to 16 stages/32 stages
- 100x antiblooming
- Camera Link interface
- RoHS compliant
Quick Info for the Dalsa Piranha ES 4k 68 kHz
Camera Category: | Line Scan |
---|---|
Camera Series: | Piranha ES |
FPS: | 68khz |
Interface: | Camera Link HS |
Manufacturer: | Dalsa |
Resolutions: | 4K |
Scanning Mode: | Line Scan |
Signal System: | Monochrome |
Technology: | Camera Link HS Cameras |
Quick Info for the Dalsa Piranha ES 4k-110 kHz
Camera Category: | Line Scan |
---|---|
Camera Series: | Piranha ES |
FPS: | 110khz |
Interface: | Camera Link HS |
Manufacturer: | Dalsa |
Resolutions: | 4K |
Scanning Mode: | Line Scan |
Signal System: | Color |
Technology: | Camera Link HS Cameras |
