Available Variations:

  • Piranha HS 8K, 34khz

  • Piranha HS 8K, 68khz

Piranha HS Series: Piranha HS 8K, 34khz

The HS-80-08K40 is a member of the Piranha HS family--DALSA's latest generation of high sensitivity, TDI based cameras. The Piranha HS family maximizes system throughput by providing large resolutions and unmatched throughput.

The camera delivers unprecedented line rates up to 68.6 kHz and a throughput up to 320 MHz. Camera configuration is extremely flexible and the number of Camera Link taps, throughput, and line rate are all software controlled.

The 8k40 model has a line rates up to 34 kHz and a throughput up to 320 MHz. Camera configuration is extremely flexible and the number of Camera Link taps, throughput, and line rate are all software controlled.

FEATURES:

  • Line rates up to 34.3 kHz
  • Up to 320 MHz throughput
  • Bidirectional
  • Selectable TDI or area mode operation
  • Stage selectablity up to 96 stages
  • 100x antiblooming
  • Camera Link interface
  • RoHS compliant

Download Product PDF:

TECHNICAL INFORMATION:

  • Resolution: 8192 x 96 TDI
  • Data Rate: 320 MHz
  • Max. Line/Frame Rate: 34.3 kHz
  • Pixel Size: 7 µm
  • Data Format: 8, 12 bit
  • Output: Med. Camera Link
  • Lens Mount: M72 x 0.75
  • Responsivity: 1170 DN/(nJ/cm²)broadband,8 bit,10 dB
  • Dynamic Range: 56 dB
  • Nominal Gain Range: ±10 dB
  • Size: 150 mm x 80 mm x 65 mm
  • Mass: <800g
  • Operating Temp: 0 °C to 50 °C
  • Power Supply: 12 V to 15 V
  • Power Dissipation: <15 W (40 MHz) / <20 W (80 MHz)
  • Regulatory Compliance: CE and RoHs
  • Control: MDR26 Camera Link
  • Data: Shared with control
  • Power: Hirose HR10 6 pin

Request a Quote

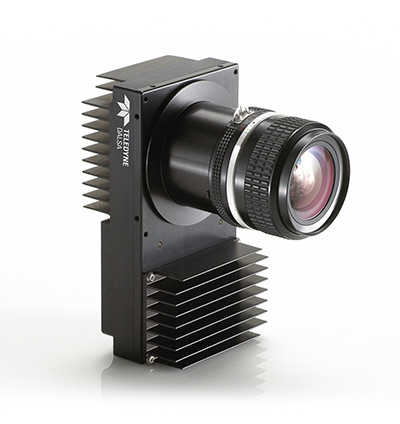

Product image of Dalsa Piranha HS 8K
Product Photos
Product image of  Dalsa Piranha HS 8K

Quick Info for the Dalsa Piranha HS 8K, 34khz

Camera Category: Line Scan
Camera Series: Piranha HS
FPS: 34khz
Interface: Camera Link HS
Manufacturer: Dalsa
Resolutions: 8K
Scanning Mode: Progressive Scan
Signal System: Monochrome

Quick Info for the Dalsa Piranha HS 8K, 68khz

Camera Category: Line Scan
Camera Series: Piranha HS
FPS: 68khz
Interface: Camera Link HS
Manufacturer: Dalsa
Resolutions: 8K
Scanning Mode: Progressive Scan
Signal System: Monochrome
