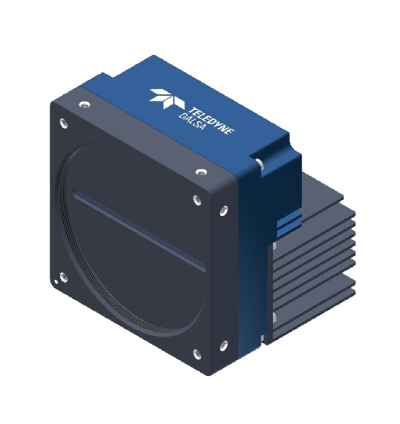

Dalsa Piranha XL 16K Camera
Get a Quote for the Dalsa Piranha XL 16K
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
Piranha XL 16K 40 kHz
Piranha XL 16K 70 kHz
Piranha™ XL Color: Multi-line CMOS TDI delivers breakthrough performance
Teledyne DALSA presents our latest multi-line CMOS color camera, delivering an unprecedented combination of speed, resolution, and responsivity with low noise for color imaging. With our TDI technology using four rows per color, the Piranha XL Color camera provides high quality images of true colors in light starved conditions.
The camera uses the Camera Link HS interface based on Teledyne DALSA's field-proven technology. It delivers very high data throughput with long transmission distances and cable flexibility. The camera, combined with the XTIUM Camera Link HS frame grabber, offers a complete solution for the next generation Automatic Optical Inspection. And all Piranha XL cameras are built with Teledyne DALSA's Trigger to Image Reliability framework, which controls and monitors the entire process from trigger through image capture and transfer to host memory and helps protect you from data loss.
TYPICAL APPLICATIONS:
- Flat panel display inspection
- Film and web inspection
- Printed circuit board inspection
- High throughput and high resolution applications
- Print inspection
Download Product PDF:
TECHNICAL INFORMATION:
KEY FEATURES:
- Trilinear color TDI sensor
- True exposure control
- Up to 70 kHz of three line RGB data
- High full well maximizing signal-to-noise
- High dynamic range using a look-up table (LUT)
- Bidirectional scanning
- Smart lens shading correction
- Parallax correction for applications using angled cameras
- CX4 active optical cable compatibility
PROGRAMMABILITY:
- Responsivity adjustable by color
- Sub-pixel spatial correction for precise encoder timing alignment
- White balancing
- Multiple areas of interest (AOI) for data reduction
- Multiple regions of interest (ROI) for easy calibration
- Lens and shading correction
- Test pattern and diagnostics
Quick Info for the Dalsa Piranha XL 16K 40 kHz
Camera Category: | Line Scan |
---|---|
Camera Series: | Piranha XL |
FPS: | 40khz |
Interface: | Camera Link HS |
Manufacturer: | Dalsa |
Resolutions: | 16K |
Scanning Mode: | Line Scan |
Signal System: | Color |
Quick Info for the Dalsa Piranha XL 16K 70 kHz
Camera Category: | Line Scan |
---|---|
Camera Series: | Piranha XL |
FPS: | 70khz |
Interface: | Camera Link HS |
Manufacturer: | Dalsa |
Resolutions: | 16K |
Scanning Mode: | Line Scan |
Signal System: | Color |
