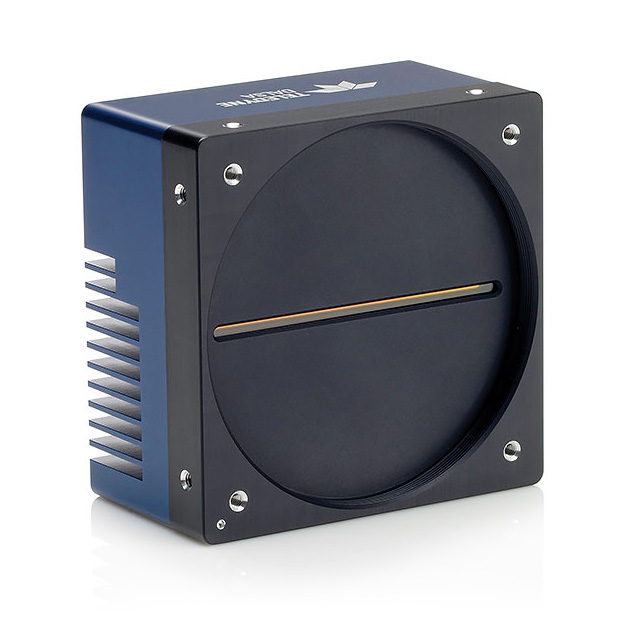

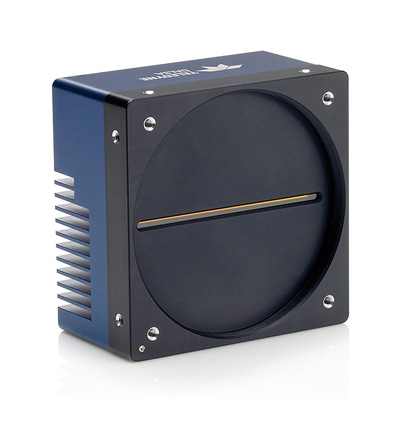

Dalsa Piranha XL Color 8K Camera

Multiline CMOS Color TDI camera delivering breakthrough performance

Teledyne DALSA presents our latest multi-line CMOS color camera, delivering an unprecedented combination of speed and responsivity with low noise and in color. Each  color uses four rows, resulting in an unprecedentedly responsive tri-color operation with no color interpolation.

The camera uses the Camera Link HS interface based on Teledyne DALSA's field-proven HS Link technology. It delivers very high data throughput with long transmission distances and reliability. The camera, combined with the XTIUM Camera Link HS frame grabber, offers a complete solution for the next generation Automatic Optical Inspection.

TYPICAL APPLICATIONS:

• Flat panel display inspection
• Film and web inspection
• Printed circuit board inspection
• High throughput and high resolution applications
• Print inspection

Download Product PDF:

• Dalsa Piranha XL Color 8K Camera

TECHNICAL INFORMATION:

FEATURES:

• Trilinear color TDI sensor
• True exposure control
• Up to 70 kHz of three line RGB data
• High full well maximizing signal-to-noise
• High dynamic range using a look-up table (LUT)
• Bidirectional scanning
• Smart lens shading correction
• Parallax correction for applications using angled cameras
• CX4 active optical cable compatibility

PROGRAMMABILITY:

• Responsivity adjustable by color
• Sub-pixel spatial correction for precise encoder timing alignment
• White balancing
• Multiple areas of interest (AOI) for data reduction
• Multiple regions of interest (ROI) for easy calibration
• Lens and shading correction
• Test pattern and diagnostics
