Dalsa Piranha XL XDR 16K Camera

Part Number(s): PX-HM-16K06X, PX-HM-16K12X

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Dalsa Piranha XL XDR 16K

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Available Variations:

  • 16K 125kHz

  • 16K 60kHz

Dalsa Piranha XL XDR 16K CMOS camera

Teledyne DALSA presents our latest multi-line CMOS camera, delivering unprecedented speed and responsivity with low noise. Exposure control allows for seamless variable speed imaging down to stopped conditions.

The new XDR model is optimized for high signal to noise ratio and extended dynamic range, which translates into even better image quality. With its multi-line CMOS TDI design, the Piranha XL already offered many times more sensitivity than anything else in its class; by trading some of its sensitivity for even lower noise and higher full well, the XDR model delivers outstanding images, particularly in high-speed applications.

And it is in those high-speed, high-bandwidth applications where the Piranha XL, with its 16k resolution and 60 kHz line rate, really shines. The Piranha XL’s rock-solid, industry-standard CLHS interface and built-in Trigger to Image Reliability  safeguard every bit in the camera’s full 980 MB/s throughput. Not only does CLHS inherently provide data resend and immunity from single bit errors, the camera paired with Teledyne DALSA’s  XTIUM Camera Link HS frame grabber, brings T2IR for monitoring, diagnostics, track and trace, and buffers to prevent data loss.

The Piranha XL offers customizable sensitvity with 4, 8, or 12 rows selectable.

Download Product PDF:

TECHNICAL INFORMATION:

  • High speed line rates at 60 kHz & 125 kHz – Fast system speed
  • High resolution 16k with 5x5 um pixel size – High system throughput with lower costs
  • High responsivity up to 1,200 DN/njcm2 in 12 bit at 1x gain – Better sensitivity at light starved condition, or lower lighting costs
  • 4, 8, or 12 row mode selectable – More options to choose to meet different application requirements
  • True exposure control – More precise control and consistent exposure in variable speed conditions all the way down to stopped
  • Bidirectionality – Multiple scans with minimum tact time
  • Enhanced sensitivity in UV region – Images with UV lighting to identify smaller defects
  • LUT for High Dynamic Range imaging – sees more details for both bright and dark scenes
  • AOI and ROI capability – Outputs and calibrates only the region you are interested in
  • Smart lens shading correction – makes your job easier
  • CLHS interface based on field proven HSLink technology – Next generation and reliable data interface for high speed imaging
  • Supports CX4 active optical fiber module – Able to extend cable length to 100s of meters
  • Compact form factor 97x97x61.1 mm – Enable inspection of 3um object resolution with two rows of cameras

Request a Quote

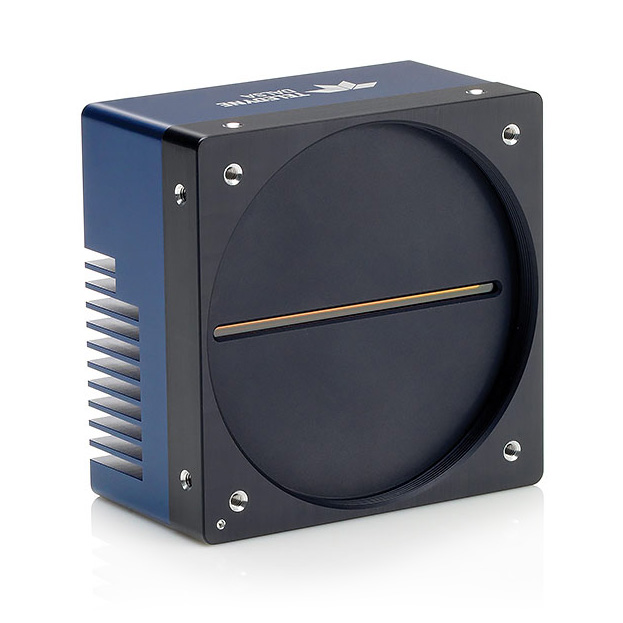

Product image of Dalsa Piranha XL XDR 16K
Product Photos

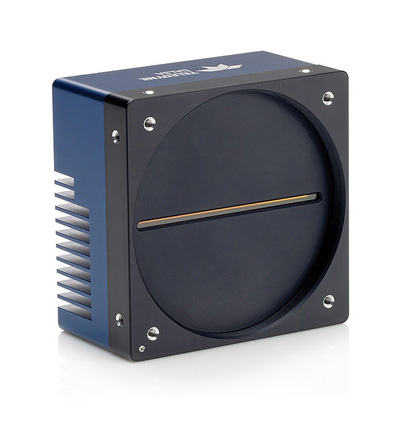

Product image of  Dalsa Piranha XL XDR 16K

Quick Info for the Dalsa 16K 125kHz

Camera Category: Line Scan
Camera Series: Piranha XL
FPS: -
Interface: Camera Link HS
Manufacturer: Dalsa
Resolutions: 16K
Scanning Mode: Line Scan
Signal System: Digital Monochrome
Technology: Camera Link HS Cameras

Quick Info for the Dalsa 16K 60kHz

Camera Category: Line Scan
Camera Series: Piranha XL
FPS: -
Interface: Camera Link HS
Manufacturer: Dalsa
Resolutions: 16K
Scanning Mode: Line Scan
Signal System: Digital Monochrome
Technology: Camera Link HS Cameras
