Dalsa Piranha4 8K Camera

Part Number(s): P4-CM-08k070

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Dalsa Piranha4 8K

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

Teledyne Dalsa introduces their trilinear color CMOS sensor, the new Piranha4 8k.

This camera provides outstanding signal-to-noise for color imaging. The camera has 8k resolution with a 7.5 μm x 7.5 μm pixel size for optimized optical design, delivering a maximum line rate of 33 kHz x 3, and a Camera Link interface.The choice to use either an ASCII command or an advanced GenICam™ compliant interface makes the camera easier to setup, control, and integrate. Programmability includes exposure control, flat field correction, white balance, color correction, and gain settings.The Piranha4 8k color camera is ideal for printing, PCB, electronics, film, and large format web inspection.

Download Product PDF:


Resolution 8,192 x 3 pixels
Line Rate 33 kHz x 3, maximum
Pixel Size 7.5 μm x 7.5 μm
Data Format 24 bit RGB (8 x 3)
Output Camera Link
Lens Mount M72 x 0.75

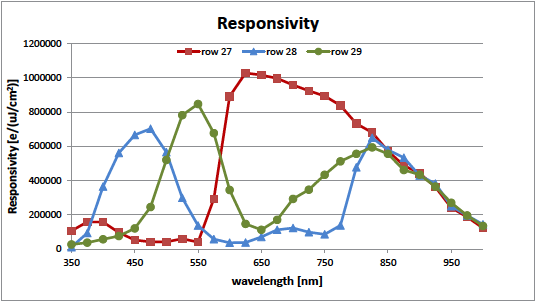

Responsivity See graph
Dynamic Range 56 dB
Nominal Gain Range Up to 12, 1x to 4x
Size 80 mm (W) x 80 mm (H) x 40.1 mm (D)
Mass 295 g
Operating Temp 0 °C to +60 °C, measured at the front plate
Power Hirose 6-pin male, +12 VDC to +24 VDC
Power Dissipation < 6.5 W
Control & Data Camera Link
Regulatory Compliance CE and RoHS




Request a Quote

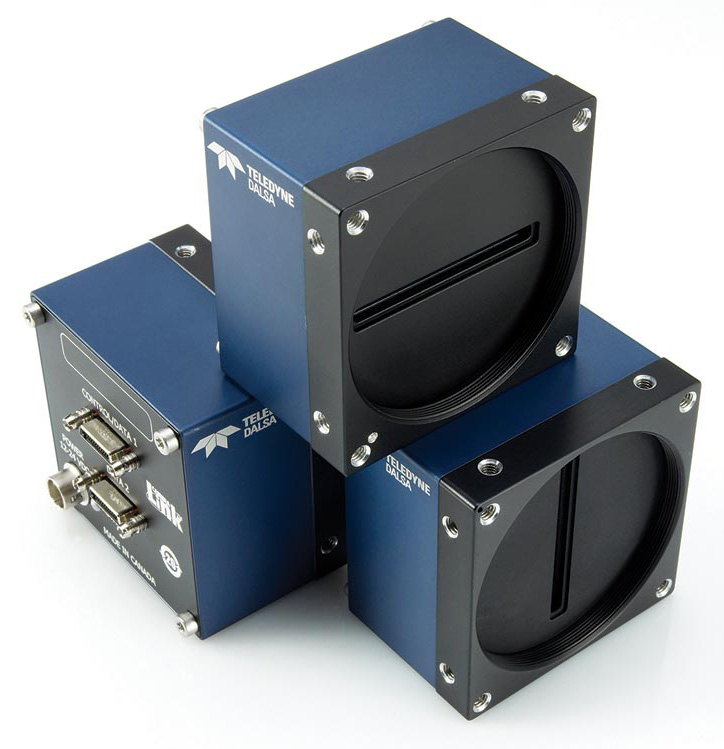

Product image of Dalsa Piranha4 8K
Product Photos
Product image of  Dalsa Piranha4 8K

Quick Info for the Dalsa Piranha4 8k

Camera Category: Line Scan
Camera Series: Piranha4
FPS: 33 kHz
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 8K
Scanning Mode: -
Signal System: Trilinear
Technology: Camera Link Cameras
