Dalsa Piranha4 Color 2k Camera

Part Number(s): P4-CC-02K04T, P4-CC-02K07T

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the Dalsa Piranha4 Color 2k

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Available Variations:

  • Piranha4 Color 2k, 40 kHz

  • Piranha4 Color 2k, 70 kHz

Dalsa Piranha4 Color 2k delivers outstanding signal-to-noise performance

Based on Teledyne DALSA's unique line scan CMOS sensor architecture, the new Piranha4 line scan cameras deliver outstanding signal-to-noise performance. The P4-2k Color has 2k resolution with a 14 µm x 14 µm pixel size. This 2k 40 kHz line rate model offers an attractive price point for applications that do not require the full 70 kHz line rate of the premium model but still need the Piranha4's responsivity and advanced features.

The Piranha4 Color's trilinear CMOS sensor provides three native colors (Red, Green, and Blue) with minimum spatial separation for the maximum in color accuracy and peformance.

In addition to its incredible speed, the Piranha4 also offers advanced features including subpixel spatial correction, lens and shading correction, and flat field correction. Independent gain and exposure control for each color allow you to tune spectral responsivity. Sub-pixel spatial correction allows precise color registration in any sampling scenarios. The camera even allows up to four simultaneous areas of interest, which allow you to focus on specific areas of an image and ignore the rest, reducing processing bandwidth and even simplifying cabling.

The camera's Camera Link interface uses advanced chipsets to allow cable lengths of 15 meters and beyond. The GenICam compliant interface makes the camera easier to set up, control, and integrate.

FEATURES:

  • Trilinear color CMOS line scan
  • 2k resolution, 14 µm pixels
  • Line rates up to 40 kHz
  • 100% fill factor
  • Multiple areas of interest
  • Low pass shading and lens correction, flat field correction
  • Independent exposure control for each color
  • Sub-pixel spatial correction
  • Camera Link interface supporting cables to 30 meters and beyond
  • GenICam compliant
  • Small, robust, wide operating temperature range

Download Product PDF:

TECHNICAL INFORMATION:

  • Resolution: 2048 x 3 pixels
  • Line Rate Up to 70 kHz
  • Pixel Size 14.08 μm x 14.08 µm (2k) and 10.56 µm x 10.56 µm (4k)
  • Data Format 8, 10, or 12 bits, selectable
  • Output: Base, Medium, Full and Deca Camera Link
  • Lens Mount: M42 x 1(2k) and M58 x 0.75 (4k), F-mount adapter available
  • Dynamic Range: > 60 dB
  • Nominal Gain Range: 1x to 10x
  • Size: 62 mm x 62 mm x 48 mm
  • Mass: < 340 g
  • Operating Temp: 0 °C to 65 °C (front plate)
  • Power: Hirose 6-pin male
  • Power Dissipation: 8 W (2k) and 12 W (4k)
  • Control & Data: SDR-26 mini Camera Link
  • Regulatory Compliance: CE, FCC, and RoHS

Request a Quote

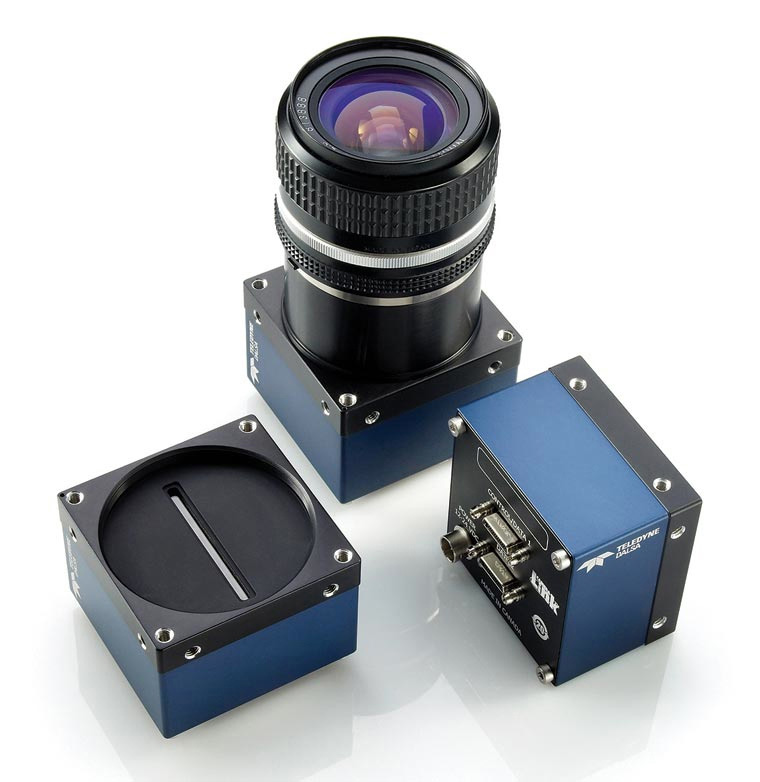

Product image of Dalsa Piranha4 Color 2k
Product Photos

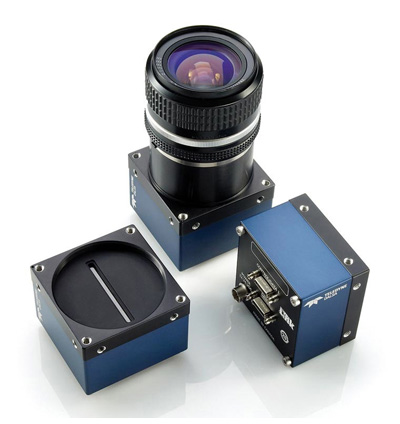

Product image of  Dalsa Piranha4 Color 2k

Quick Info for the Dalsa Piranha4 Color 2k, 40 kHz

Camera Category: Line Scan
Camera Series: Piranha4
FPS: 40khz
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 2K
Scanning Mode: -
Signal System: Color
Technology: Camera Link Cameras

Quick Info for the Dalsa Piranha4 Color 2k, 70 kHz

Camera Category: Line Scan
Camera Series: Piranha4
FPS: 70khz
Interface: Camera Link
Manufacturer: Dalsa
Resolutions: 2K
Scanning Mode: -
Signal System: Color
Technology: Camera Link Cameras
