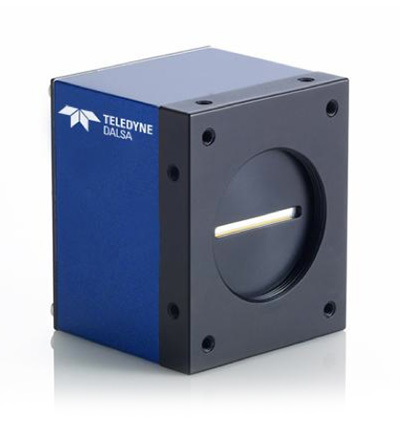

Dalsa Spyder3 Color 2K 18khz Camera

Spyder3 color 2K 18khz GigE 80M pixel

The Spyder3 GigE surpasses its predecessor, the Spyder2, with 3x more responsivity. At its core is Teledyne DALSA’s latest line scan technology that achieves unprecedented responsivity.

The Spyder3 GigE is fully programmable, offering precise control over key performance variables such as gain and offset. A GUI is provided allowing you to begin imaging in minutes.

For those OEMs migrating from the Spyder or Spyder2, the Spyder3 GigE does not require a new optics design because pixel size and fill factor remain unchanged at 14 µm and 100% respectively. Also, with a GigE interface, you no longer need a frame grabber which means significant system cost savings.

In addition to its high performance and affordability, Spyder3 GigE also incorporates advanced features such as flat field correction and CDS (Correlated Double Sampling).

Teledyne DALSA’s Spyder3 Color is a color line scan camera based on the successful Spyder3 dual line scan monochrome model. This camera provides high color fidelity, flexibility, and a low cost solution.

The Spyder3 Color has the red and blue color pixels alternating in one line and all the green pixels in the other line with no spacing between the lines. The camera offers several color output format options, including RGB, RG/BG, or G only to meet different imaging requirements

FEATURES:

• RGB, RG/BG, or G output formats
• Outstanding signal to noise ratio
• Antiblooming and exposure control
• Operating temperature 0~65°C (frontplate)
• GigE Vision interface
• Pre-calibrated light sources
• Cost-effective, easy-to-use
• Supported by SaperaLT/CamExpert
• Selectable high or low sensitivity mode
• Horizontal binning, vertical binning as Tall Pixel Mode
• Flat field correction
• RoHS compliant

Download Product PDF:

• Dalsa Spyder3 Color 2K 18khz Camera

TECHNICAL INFORMATION:

• Sensor type: CCD Bilinear
• Resolution: 2048 x 2 pixels
• Pixel Size: 14 μm x 14 μm
• Colour format: RGB, RG/BG, G only
• Responsivity: 8 DN/nj/cm2@0dB 8 bit
• Max line rate: 18 kHz
• Throughput: 80 Mpix/s
• Bit depth: 8 or 12 bit
• Gain: 0~+20 dB
• Interface: GigE Vision
• Data Format: 8, 12 bit
• Lens Mount: M42 x 1, C, F mount
• Nominal Gain Range: ±10 dB
• Size: 72 (h) x 60 (w) x 50 (l) mm (1k and 2k), 85 (h) x 65 (w) x 50 (l) mm (4k)
• Mass: < 300 g
• Operating Temp: 0 °C to 50 °C
• Power Supply: 12 V to 15 V
• Power Dissipation: <8.5 W
• Control: RJ-45, 15-pin mini-DSUB
