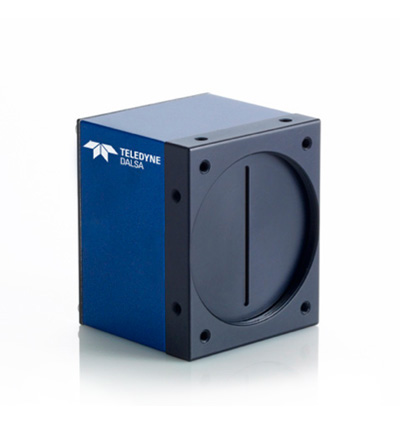

Dalsa Spyder3 4K, 18Khz Camera

Spyder3 CL Series: Spyder3 4K, 18Khz CL Without Mount

The Spyder 3 CL surpasses its predecessor, the Spyder2, with 3x more responsivity. At its core is DALSA’s latest line scan technology that achieves unprecedented responsivity and throughput.

The Spyder 3 CL is fully programmable, offering precise control over key performance variables such as gain and offset..

For those OEMs migrating from the Spyder or Spyder2, the Spyder 3 CL does not require a new optics design because pixel size and fill factor remain unchanged at 14 µm and 100% respectively. Spyder 3 CL uses a proven Camera Link interface.

In addition to its high performance and affordability, Spyder 3 CL also incorporates advanced features such as flat field correction and CDS (Correlated Double Sampling).

FEATURES:

• Dual line scan technology for high responsivity
• Camera Link interface
• Programmable gain, offset, line rates, trigger mode, test pattern output, and camera diagnostics
• Selectable high or low sensitivity mode
• Horizontal binning, vertical binning as Tall Pixel Mode
• Flat field correction
• RoHS compliant

Download Product PDF:

• Dalsa Spyder3 4K, 18Khz Camera

TECHNICAL INFORMATION:

• Resolution: 4096
• Data Rate: 80 Mega pixels/second
• Max. Line/Frame Rate: 18.5 kHz
• Pixel Size: 10 µm
• Data Format: 8, 12 bit
• Output: Base Camera Link
• Lens Mount: M42 x 1, M72, F
• Responsivity: 408 DN(nJ/cm²)@10dB
• Dynamic Range: Up to 1400 : 1
• Nominal Gain Range: ±10 dB
• Size: 65 x 53.7 x 85
• Mass: 300 g
• Operating Temp: 0 °C to 50 °C
• Power Supply: +12 V to +15 V
• Power Dissipation: <7 W
• Regulatory Compliance: CE and RoHS
• Control: MDR26 female Camera Link
• Data: Shared with control
• Power: Hirose 6 HR10 pin male
