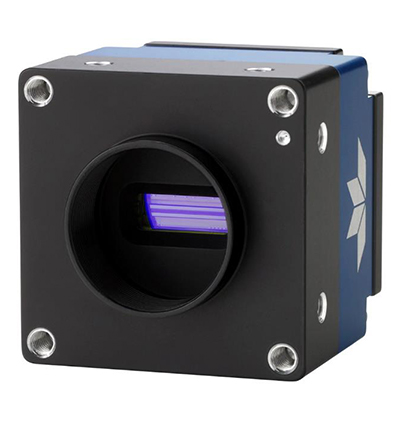

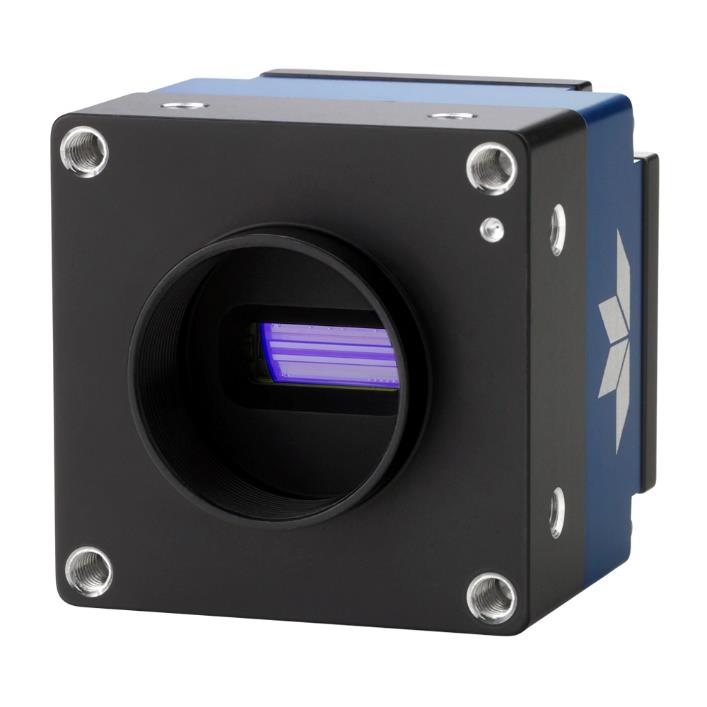

Dalsa Linea SWIR Camera

Teledyne DALSA's short-wave infrared (SWIR) GigE line scan camera features a cutting-edge InGaAs sensor in a compact package for a wide variety of machine vision applications. This high speed, high resolution camera is the first product in DALSA's SWIR family and can be used in a variety of inspection applications, such as foreign object detection in a food product stream, identifying bruised fruits, imaging through silicon to detect cracks and saw marks on wafers, seeing through pharmaceutical pill packs to ensure each is filled, and more.

Download Product PDF:

• Dalsa Linea SWIR Camera

TECHNICAL INFORMATION:

• Resolution: 1024 pixels
• Line Rate: 40 kHz
• Pixel Pitch: 12.5 µm
• Spectral Band: 950 to 1700 nm
• Max Responsivity: 800
• Dynamic Range: 72 dB
• Peak Quantum Efficiency: 66%
• Dark Current: < 5 pA
• Output Bit Depth: 8, 12 bit mono
• Optical Interface: C Mount
• Control & Data: GigE
• GPIO: Programmable: 2 inputs, 2 outputs
• Camera Size: 46 x 46 x 55 mm
• Camera: Weight: < 208 g
