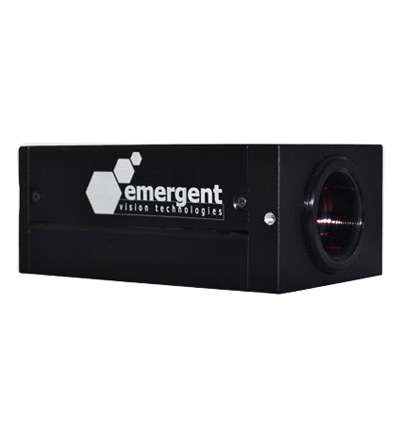

Emergent Vision Technologies HR-12000-S Camera

Emergent Vision Technologies introduces the HR-12000-S cameras.

The HR-12000-S utilizes the Sony Pregius IMX253 1.1" sensor. Polarized sensor options are also available. At full resolution (4096 x 3000), you get 80 frames per second. Like all Emergent Vision cameras, the HR-12000-S series offers various triggering modes for the precise synchronization at <1µs. This combination is ideal for any application needing to see the details at real time imaging speeds. Overall, the HR-12000-S delivers the resolution you need at unmatched speeds.

Download Product PDF:

• Emergent Vision Technologies HR-12000-S Camera

TECHNICAL INFORMATION:

Resolution
4096 x 3000 pixels (12MP) in monochrome (M) and color (C)

Frames per second
80 fps at full resolution

Sensor
Sony IMX253LLR, Sony IMX253LQR, Sony IMX253MYR, Sony IMX253MZR

Video Interface
Video interface: 10GigE via SFP+ transceivers based on copper or fiber for extreme cable lengths, GigE Vision® and GenICam™ compliant

Lens Mount
C-mount lens holder with optional Canon EF lens adapter for integrated lens control (aperture and focus) directly from our software API

Recording Features
Various recording features like region of interest (ROI) and sequence modes
