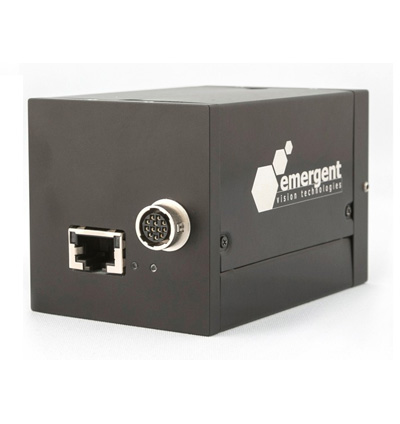

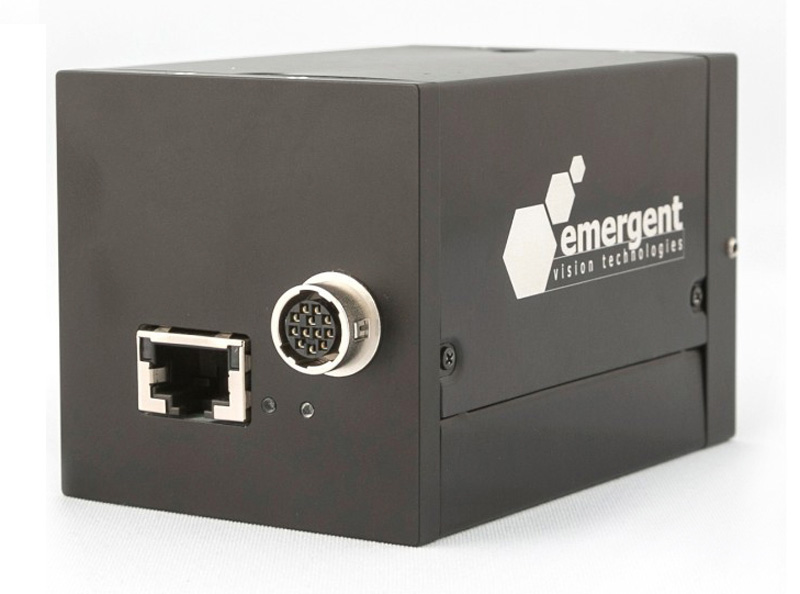

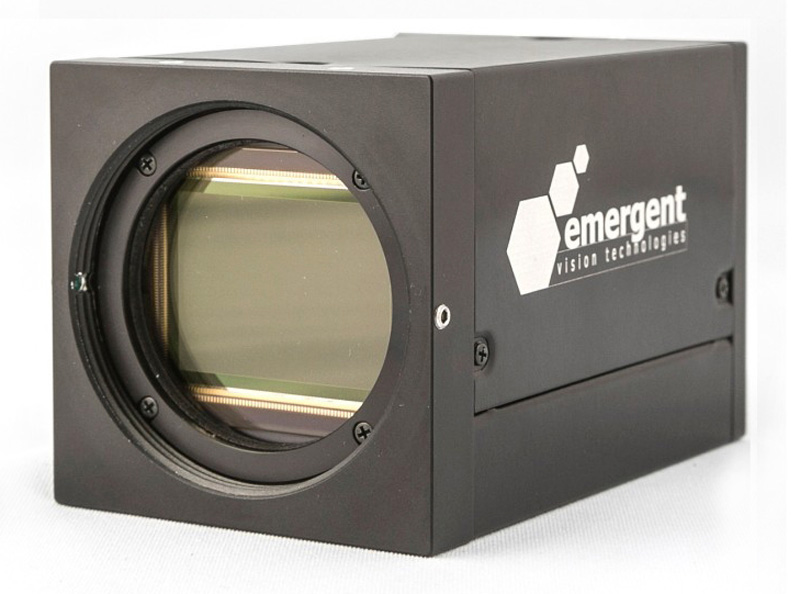

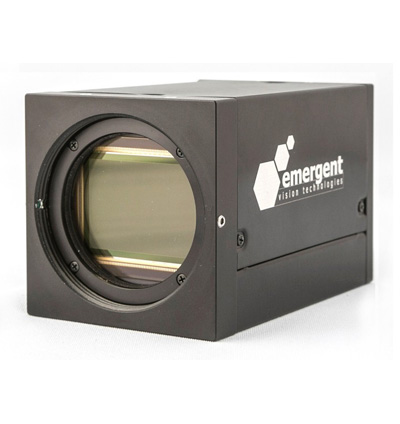

Emergent Vision Technologies HT-20000 Camera

The HT Family of cameras have arrived!

Using the 10GBaseT interface, with its sleek smaller case and CAT6A connection, this camera has the familiarity of GigE but with 10x the speed.  Using CAT6A cabling, you can get cable lengths from 1 meter up to 100 meters.  The HT-20000, is setting a new standard in advanced imaging technologies for applications ranging from broadcast sports to high speed inspection.  At full resolution (5120x3840), you get 32 frames per second.  Like all Emergent Vision cameras, the HT-20000 series offers various triggering modes for the precise synchronization at <1µs.  This combination is ideal for any application needing to see the details at real time imaging speeds.

All EVT cameras are in full compliance with the machine vision standards GigE Vision® and GenICam™ which ensures the interoperability with all major software libraries. Our fully owned and robust camera driver in combination with our feature rich Software Development Kit eSDK ensure the fast, easy and hassle-free software integration in Windows™ and Linux based systems.  Overall, the HS-20000 delivers the resolution you need at unmatched speeds.

Ideal for large aerial surveillance of sport stadiums, production lines, robot cages or for Unmanned Aerial Vehicles

Download Product PDF:

• Emergent Vision Technologies HT-20000 Camera

TECHNICAL INFORMATION:

• 10GBaseT - CAT6A Connection
• 5120 x 3840 pixels (20 MP) in monochrome (M) or color (C)
• 32 fps at full resolution
• CMOS Global Shutter sensor CMV20000 from CMOSIS
• Video interface: 10GigE via SFP+ transceivers based on copper or fiber for extreme cable lengths,
• GigE Vision® and GenICam™ compliant
• 35mm F-mount lens mount
• Various recording features like region of interest (ROI) and sequence modes
