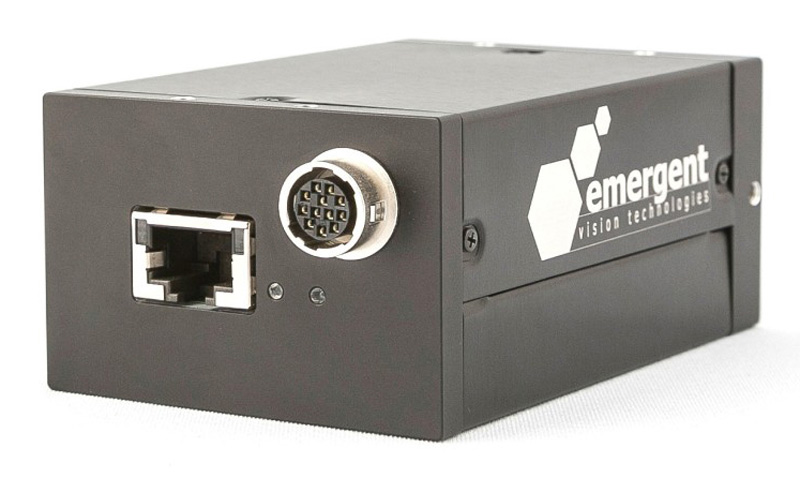

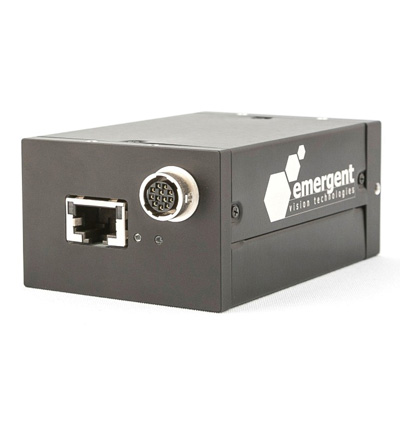

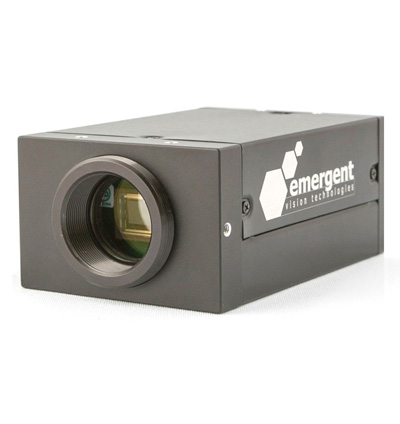

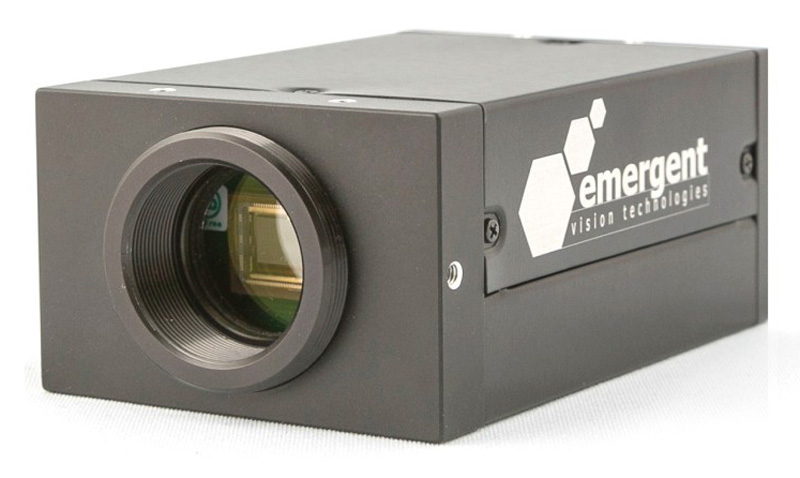

Emergent Vision Technologies HT-4000 Camera

The HT Family of cameras have arrived!

Using the 10GBaseT interface, with its sleek smaller case and CAT6A connection, this camera has the familiarity of GigE but with 10x the speed.  Using CAT6A cabling, you can get cable lengths from 1 meter up to 100 meters.  The HT-4000 with its 4MP (2048 x 2048) resolution features square pixels that are especially attractive for the optical analysis of fast moving circular and square objects. Like all Emergent Vision cameras, the HT-4000 offers various triggering modes for the precise synchronization at <1µs.

All EVT cameras are in full compliance with the machine vision standards GigE Vision® and GenICam™ which ensures the interoperability with all major software libraries. Our fully owned and robust camera driver in combination with our feature rich Software Development Kit eSDK ensure the fast, easy and hassle-free software integration in Windows™ and Linux based systems

EXAMPLE APPLICATIONS:

• High speed inspection, geometric measurement in 2D and color analysis
• 3D inspection and measurement with laser profilometry or stereo vision thanks to special time synchronization features
• Airflow analysis at wind tunnels as well as fluid flow
• Motion analysis in bioscience and sports e.g., golf swing analysis

Download Product PDF:

• Emergent Vision Technologies HT-4000 Camera

TECHNICAL INFORMATION:

• 10GBaseT - CAT6A
• 2048 x 2048 pixels (4 MP) in monochrome (M), color (C) and near-infrared enhanced (N), also available with rectangular housing (-RA)
• 179 fps at full resolution
• Industrial CMOS sensor CMV4000 with Global Shutter technology from CMOSIS
• Video interface: 10GigE via SFP+ transceivers based on copper or fiber for extreme cable lengths, GigE Vision® and GenICam™ compliant
• C-mount lens holder
• Various recording features like region of interest (ROI) and sequence modes
