FLIR A300 Camera

Part Number(s): 42701-1001, 48201-1001

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the FLIR A300

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Email: *

The FLIR A300 camera offers more soluitions for PC users.

The FLIR A300 camera offers an affordable and accurate temperature measurement solution for anyone who needs to solve problems that do not call for the highest speed or reaction and who uses a PC. Due to to its composite video output, it is also an excellent choice for thermal image automation applications, where you can utilize its unique properties such as looking through steam.


  • MPEG-4 streaming
  • PoE (Power over Ethernet)
  • Built-in web server
  • General purpose I/O
  • 100 Mbps Ethernet (100 m cable, wireless, fiber, etc.)
  • Synchronization through SNTP
  • Composite video output
  • Multi-camera utility software: FLIR IP Config and FLIR IR Monitor included
  • Open and well-described TCP/IP protocol for control and set-up
  • 16-bit 320 × 240 images @ 3 Hz, radiometric
  • Lenses: 25o included, 15o and 45o optional

Download Product PDF:


  • Field of View: Built in 25o x 18.8o
  • Minimum focus distance: 0.4m
  • Focal Length: 18mm
  • Spatial resolution: 1.36mrad
  • Lens identification: Automation
  • F-number: 1.3
  • Thermal sensitivity/ NETD: <0.05oC @ + 30oC/ 50mK
  • Image frequency: 30Hz
  • Focus: Automatic or manual (built in motor)
  • Zoom: 1-8x continuous, digital, interpolating zooming on images
  • Detector type: Focal Plane Array (FPA), uncooled microbolometer
  • Spectral range: 7.5-13μm
  • IR resolution: 320 x 240pixels
  • Detector pitch: 25μm
  • Detector time constant: Typical 12ms
  • Object temperature range: -20ooo
  • Weight: 0.7kg
  • Camera size (L x W x H): 170 x 70 x 70mm
  • Base mounting: 2 x M4 thread mounting holes (on three sides)
  • Housing material: Aluminium

Lens Available:

  • 25deg

Request a Quote

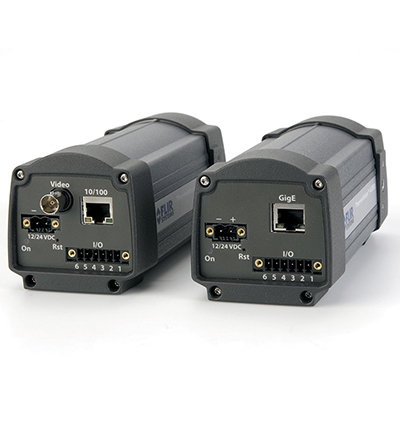

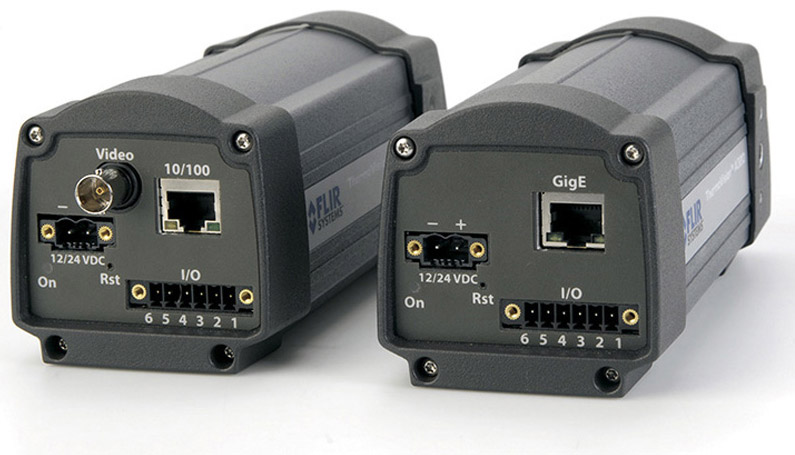

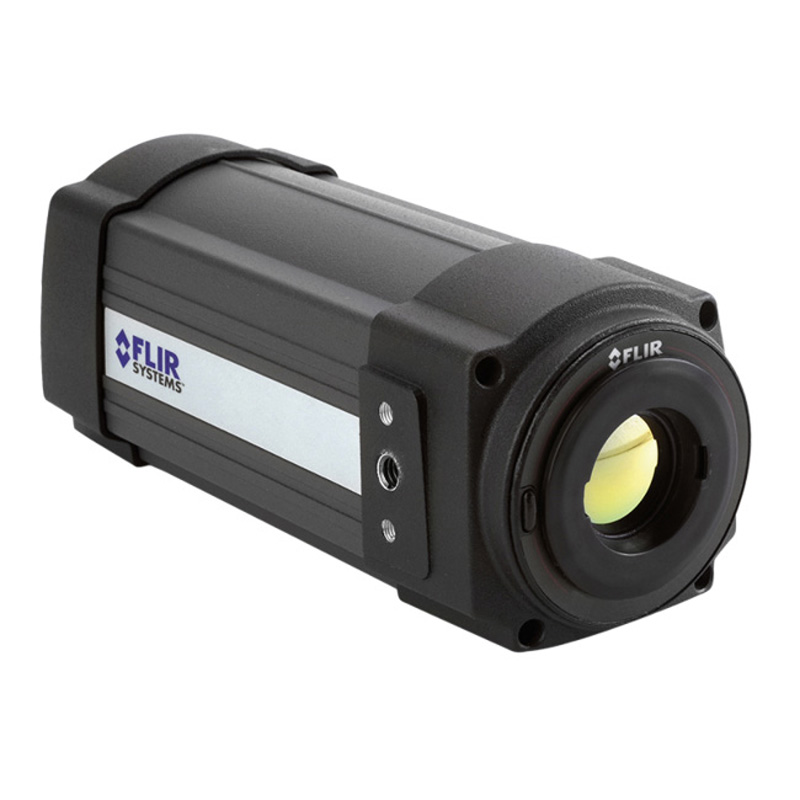

Product image of FLIR A300
Product image of FLIR A300
Product Photos
Product image of  FLIR A300 Product image of  FLIR A300

Quick Info for the FLIR A300

Camera Category: Area Scan
Camera Series: Thermal Imaging
Format: -
FPS: 30Hz
Interface: 1 GigE
Manufacturer: FLIR
Resolutions: Under 1 MP
Scanning Mode: Area Scan
Sensor: -
Shutter: -
Signal System: IR
Technology: GigE Cameras
Technology: LWIR
