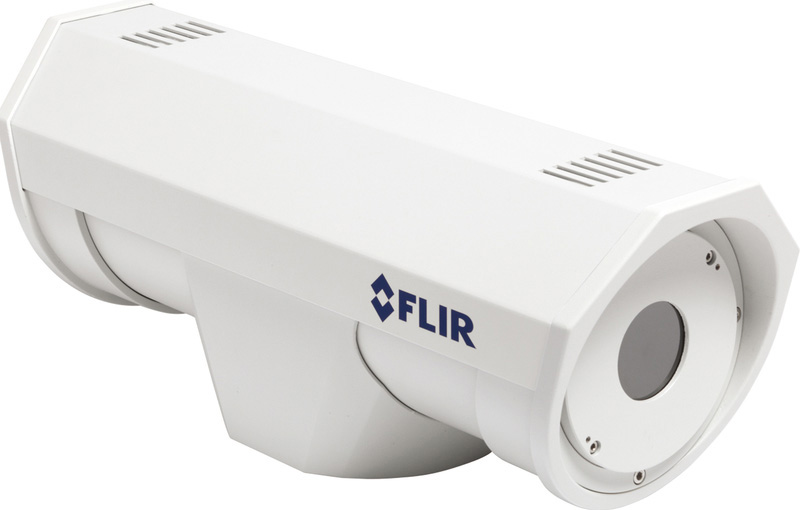

FLIR A310F Camera

FLIR A310 f (fix-mounted) monitoring system is designed to withstand the elements to remotely collect valuable data.

"Smart" thermal imagers and software can alert operators to security breaches and impending problems indicative of excess heat 24/7/365 while monitoring:

• Electrical Substations
• Hazardous Material Piles
• Warehouses
• Critical Vessels

FEATURES:

• FLIR A310 camera: 320 x 240 pixel IR resolution
• Support for the Ethernet/IP field bus protocol (analysis, alarm, and simple camera control)
• Support for the Modbus TCP field bus protocol (analysis, alarm, and simple camera control)
• Built-in spot and area temperature measurement analysis functionality
• Extensive alarm functionality
• File sending (FTP) or email (SMTP) of analysis results or images
• 100MB Ethernet supplies simultaneous analog and digital video at 30 Hz
• PoE (Power over Ethernet)
• Built-in web server
• General purpose I/O
• Synchronization through SNTP
• Composite video output
• Multi-camera utility software: FLIR IP Config and FLIR IR Monitor included
• Open and well-described TCP/IP protocol for control and setup
• 16-bit 320 x 240 images @ 7 – 8 Hz, radiometric
• IP-66 encapsulation

Download Product PDF:

• FLIR A310F Camera

TECHNICAL INFORMATION:

• Detector Type: Uncooled Microbolometer
• Spectral Range: 7.5 – 13.0 μm
• Resolution: 320 × 240
• Detector Pitch: 25 μm
• NETD: <50 mK
• Time Constant: <12 ms
• Frame Rate: 30 Hz/9 Hz
• Standard Temperature Range: -20^oC to 120^oC (-4^oF to 248^oF ) 0^oC to 350^oC (32^oF to 662^oF )
• Spotmeter: 10
• Area: 10 boxes with max./min./average/position
• Isotherm: 1 with above/below/interval
• Difference Temperature: Delta temperature between measurement functions or reference temperature
• Reference Temperature: Manually set or captured from any measurement function
• Atmospheric Transmission Correction: Automatic, based on inputs for distance, atmospheric temperature and relative humidity
• Optics Transmission Correction: Automatic, based on signals from internal sensors
• Ethernet Video: MPEG-4
• Analog Video: NTSC/PAL
• Weight: 46 lb (configuration dependent)
• Input Voltage: 21-30 VAC 21-30 VDC
• Power Consumption: 24 VAC: 85 VA (max w/o heaters); 215 VA (max w/ heaters) 24 VDC: 65 W (max w/o heaters); 195 W (max w/ heaters)

Lens Available:

• 6deg: 61201-1101
• 15deg: 61201-1102
• 25deg: 61201-1103
• 45deg: 61201-1104
• 90deg: 61201-1105
