The FLIR A320 camera offers an affordable and accurate temperature measurement solution for anyone who needs to solve problems that need built in “smartness” like analysis, alarm functionality and autonomous communication using standard protocols. The FLIR A320 camera also has all necessary features and functions to build distributed single- or multi-camera solutions utilizing standard Ethernet hardware and software protocols.

The A320 is designed to deliver accurate thermographic imaging and repeatable temperature measurements in a wide range of automation applications.

Typical applications:

1. Safety with temperature Alarms (Multi-camera applications), Fire prevention, Critical Vessel Monitoring and Power Utility Asset Management

2. Volume orientated Industrial control (Multi-camera installation is possible)

Find Faults Quickly and Save costs - the A320 can spot subtle temperature variations thus finding and resolving problems early can save thousands of dollars by cutting down on scrap and warranty costs, and improving product quality.


Features:

  • 100 Mbps Ethernet (100 m cable, Wireless, Fiber,….)
  • MPEG-4 streaming
  • PoE (Power over Ethernet)
  • Built-in extensive Analysis functionality
  • Extensive Alarm functionality, as function of Analysis and more
  • On schedule: file sending (ftp) or email (SMTP) of analysis results or images
  • On alarms: file sending (ftp) or email (SMTP) of analysis results or images
  • Synchronization through SNTP
  • 16-bit 320x240 images semi-real time. Signal- and Temperature linear
  • Built-in Web server
  • Composite Video output
  • General Purpose I/O
  • Multi-camera Utility software: IP Config Utility and IR Monitor included
  • Open and well described TCP/IP protocol for control and set-up

Download Product PDF:

TECHNICAL INFORMATION:

  • Field of View: Built in 25o x 18.8o
  • Minimum focus distance: 0.4m
  • Focal Length: 18mm
  • Spatial resolution: 1.36mrad
  • Lens identification: Automation
  • F-number: 1.3
  • Thermal sensitivity/ NETD:50 mK @ +30oC
  • Image frequency: 9 Hz/ 30 Hz
  • Focus: Automatic or manual (built in motor)
  • Zoom: 1-8x continuous, digital, interpolating zooming on images
  • Detector type: Focal Plane Array (FPA), uncooled microbolometer
  • Spectral range: 7.5-13μm
  • IR resolution: 320 x 240pixels
  • Detector pitch: 25μm
  • Detector time constant: Typical 12ms
  • Object temperature range: –15 to +50oC
  • Weight: 0.7kg
  • Camera size (L x W x H): 170 x 70 x 70mm
  • Base mounting: 2 x M4 thread mounting holes (on three sides)
  • Housing material: Aluminium

Lens Available:

  • 25deg

Request a Quote

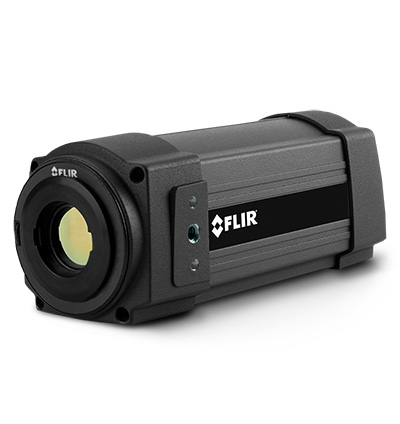

Product image of FLIR A320
Product Photos

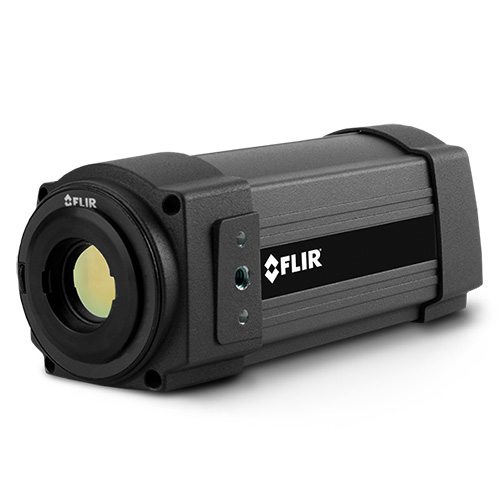

Product image of  FLIR A320

Quick Info for the FLIR A3201

Camera Category: Area Scan
Camera Series: Thermal Imaging
FPS: 9Hz
Interface: Ethernet
Manufacturer: FLIR
Resolutions: Under 1 MP
Scanning Mode: Area Scan
Signal System: IR
