FLIR A500 Camera

Part Number(s): 90600-0000

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the FLIR A500

Please fill out the form below to request a quote. Fields marked with * are required.

First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

The FLIR A500 Thermal Smart Sensor Camera has the features automation solution providers need for complex monitoring applications, including critical infrastructure, product quality, and early fire detection. The Smart Sensor configuration includes multiple measurement tools and alarms while also providing computing-on-the-edge, with analytics performed at the camera level for immediate results. With a range of lens choices, motorized focus control, and unrivaled connectivity, A400/A500/A700 cameras offer unmatched power and flexibility. Easy configuration allows you to tailor this monitoring system to your company’s quality, productivity, maintenance, and safety needs

FLEXIBLE MEASUREMENT FEATURES FOR A WIDE RANGE OF APPLICATIONS

Includes options to adjust measurements and alarms based on a reference temperature source (advanced)

ADVANCED ANALYTICS FOR IMPROVED DECISIONS SUPPORT

Edge analytics with features such as a polygon function (advanced) help you make immediate, informed decisions

WORLD-CLASS THERMAL IMAGING

Provides exceptional image quality with up to 640 × 480 (307,200 pixels) and superior measurement accuracy (<±2°C)

TECHNICAL INFORMATION:

  • Digital I/O connector type: M12 12-pin A-coded, Male (shared with external power)
  • Digital Inputs: 2x opto-isolated, Vin(low)= 0–1.5 V, Vin(high)= 3–25 V
  • Digital Output Purpose:
    • As a function of alarm, output to external device
    • Fault (NC)
  • Digital Outputs: 3x opto-isolated, 0–48 V DC, max. 350 mA; solid-state opto relay; 1x dedicated as Fault output (NC)
  • Encoding: Video stream: H.264, MPEG4, or MJPEG Radiometric stream: Compressed JPEG-LS, FLIR radiometric
  • Ethernet Interface: Wired, Wi-Fi (optional)
  • WiFi: Optional feature purchased separately. RP-SMA, female connector
  • EMC
    • ETSI EN 301 489-1 (radio)
    • ETSI EN 301 489-17 (radio)
    • EN 61000-4-8 (magnetic field)
    • FCC 47 CFR Part 15 Class B (emission US)
    • ISO 13766-1 (EMC - Earth-moving and building construction machinery)
    • EN ISO 14982 (EMC - Agricultural and forestry machinery)
  • Image Frequency: 30 Hz
  • Thermal Sensitivity/NETD: Lens dependent
  • Accuracy: ±2°C (±3.6°F) or ±2% of reading, for ambient temperature 15°C–35°C (59°F–95°F) and object temperature above 0°C (32°F)
  • Alarm Functions: On any selected measurement function, digital in, and internal camera temperature
  • Alarm Output:
    • Digital out
    • E-mail (SMTP) (push)
    • EtherNet/IP (pull)
    • File transfer (FTP) (push)
    • Modbus TCP master write (push)
    • Modbus TCP slave (pull)
    • MQTT (push)
    • Query over RESTful API (pull)
    • Store image or video

Request a Quote

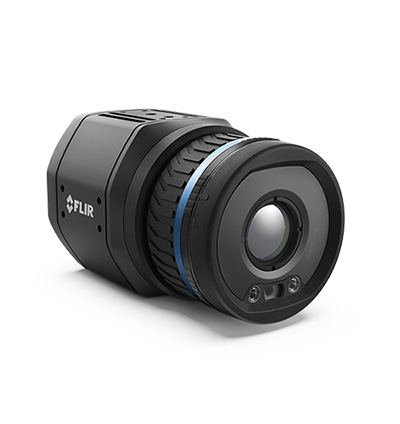

Product image of FLIR A500
Product Photos

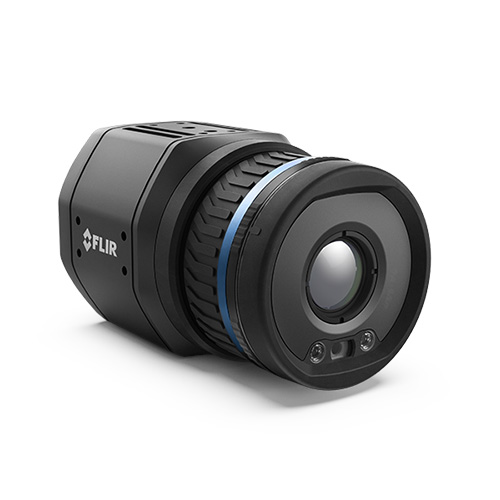

Product image of  FLIR A500

Quick Info for the FLIR A500

Camera Category: Area Scan
Camera Series: Thermal Imaging
FPS: 30Hz
Interface: GigE
Manufacturer: FLIR
Resolutions: Under 1 MP
Scanning Mode: -
Signal System: IR
