FLIR A615 camera is natural choice for PC users.

The FLIR A615 camera has features and functions that make it the natural choice for anyone who uses PC software to solve problems and needs 640 × 480 pixel resolution. Among its main features are GigE VisionTM and GenICamTM compliance, which makes it plug-and-play when used with software packages such as IMAQ Vision and Halcon.

TYPICAL APPLICATIONS:

  • High-end infrared machine vision that needs temperature measurement
  • Slag detection
  • Food processing
  • Electronics testing
  • Power resistor testing
  • Automotive

FEATURES:

  • Affordable
  • GigE compliant
  • GenICam compliant
  • Trigg/synchronization/GPIO
  • 16-bit 640 × 480 images @ 50 Hz, signal, temperature linear, and radiometric
  • Windowing mode: 640 × 240 @ 100 Hz or 640 × 120 @ 200 Hz
  • Compliant with any software that supports GenICam, including National Instruments IMAQ Vision and Stemmers Common Vision Blox
  • Open and well described TCP/IP protocol for control and set-up

Download Product PDF:

TECHNICAL INFORMATION:

  • Field of View: Built in 25o x 18.8o
  • Minimum focus distance: 0.4m
  • Focal Length: 24.5mm
  • Spatial resolution: 0.69mrad
  • Lens identification: Automation
  • F-number: 1.0
  • Thermal sensitivity/ NETD: <0.05o C @ +30oC
  • Image frequency: 50Hz (100/200 Hz with windowing)
  • Focus: Automatic or manual (built in motor)
  • Detector type: Focal Plane Array (FPA), uncooled microbolometer
  • Spectral range: 7.5-13μm
  • IR resolution: 640 x 480pixels
  • Detector pitch: 17μm
  • Detector time constant: Typical 8ms
  • Object temperature range: -20oC to + 150oC, 0 to +650oC, 300 to +2000oC
  • Weight: 0.7kg
  • Camera size (L x W x H): 216 x 73 x 75mm
  • Base mounting: 2 x M4 thread mounting holes (on three sides)
  • Housing material: Aluminium

Request a Quote

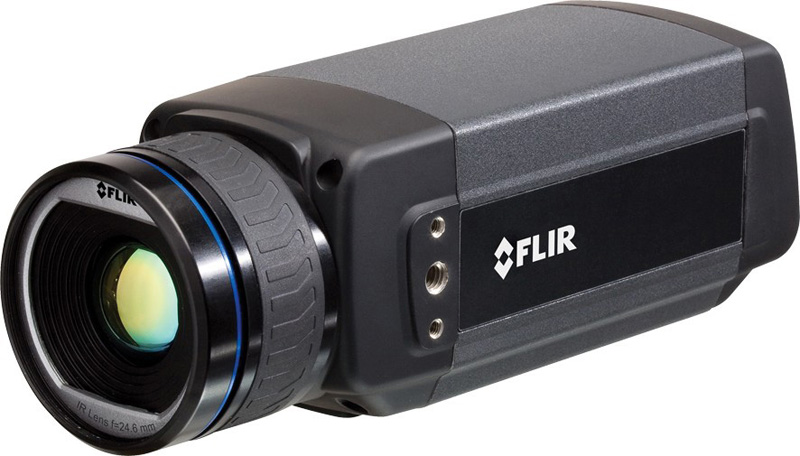

Product image of FLIR A615

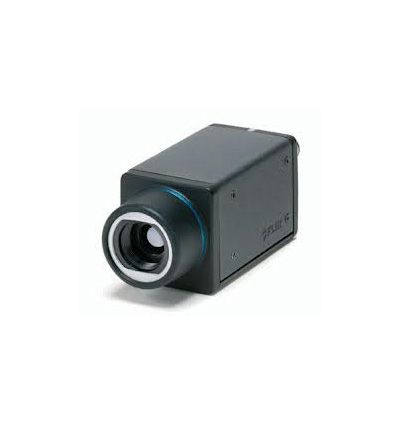

Product image of FLIR A615
Product Photos
Product image of  FLIR A615 Product image of  FLIR A615

Quick Info for the FLIR A615

Camera Category: Area Scan
Camera Series: Thermal Imaging
FPS: 50
Interface: GigE
Manufacturer: FLIR
Resolutions: Under 1 MP
Scanning Mode: -
Signal System: IR
