Phase 1 offers the C14440-20UP, the ORCA-Fusion, built from the sensor up, balancing the complex nuances of camera features to provide beautiful images and robust data at all lights levels, but especially in tough low-light conditions. The exceptionally low and highly uniform read noise of the ORCA-Fusion means that when the sample emits even just a handful of photons, either by default or by experimental design, they are not lost in the noise, but detected and reliably quantified.

Download Product PDF:

TECHNICAL INFORMATION:

  • High resolution : 2304 x 2304 (5.3 Megapixels)
  • High speed : 100 frames/s (at 2304 X 2048 ROI)
  • Dynamic range : 21,400:1
  • Pixel size : 6.5 μm X 6.5 μm
  • Read noise : 0.7 electrons, rms (Ultra-quiet Scan)
  • Prnu : 0.06 % rms (@ 7500 electrons)
  • DSNU : 0.3 electrons rms
  • Peak QE : 80 %

Request a Quote

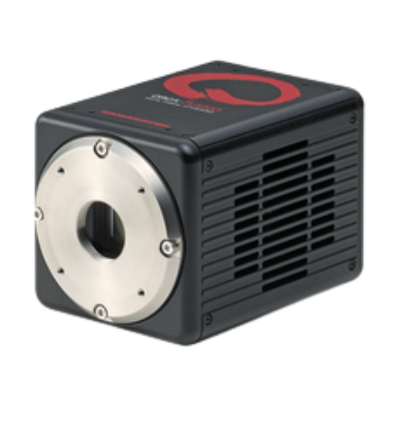

Product image of Hamamatsu C14440-20UP
Product Photos

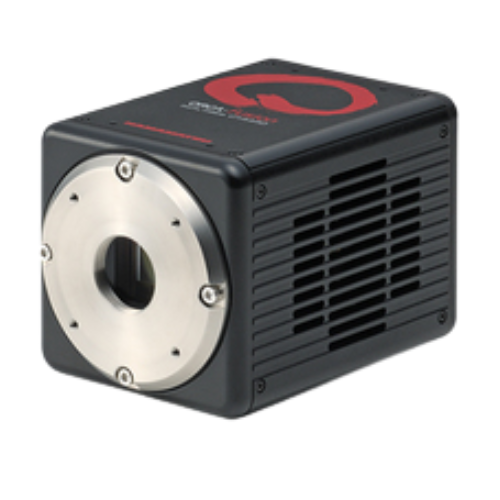

Product image of  Hamamatsu C14440-20UP

Quick Info for the Hamamatsu c14440-20up

Camera Series: Visible Camera
FPS: 89.1
Interface: CoaXPress
Manufacturer: Hamamatsu
Resolutions: -
Scanning Mode: Area Scan
Signal System: Color / Monochrome
