The iENSOMIPI sensor module ISM-AR0521 is a cornerstone of iENSO’sembedded ecosystem of SOMs, camera modules, and wireless connectivity modules.

The ISM-AR0521 uses ON Semiconductor’s AR0521 sensor with advanced technology by providing high sensitivity BSI pixels, on-chip color & lens shading corrections, and wide temperature range to match specific application requirements.

The ON Semi AR0521 sensor features a type 1/2.5” color CMOS with 5.0M effective pixel to achieve 2592 x 1944 resolution, which performs perfectly with iENSO’smultiple lens types.

Download Product PDF:

TECHNICAL INFORMATION:

  • Framerate: 5M at 30 fps for 12 bits (configurable 8/10/12-bit 4-lane MIPI CSI-2 interface).
  • Pixel details: 2.2 μm, 2592 x 1944 array (4:3), color or mono, BSI pixel architecture, rolling shutter, CRA 9°.
  • Package/Environmental: Plastic, PLCC-52, 12 mm x 12 mm. Operating temperature range from -30°C to 85°C.

Request a Quote

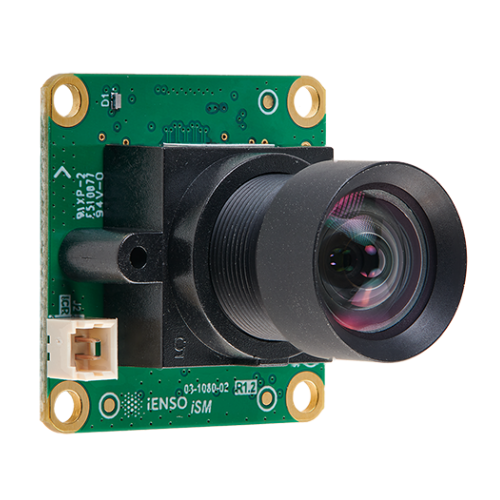

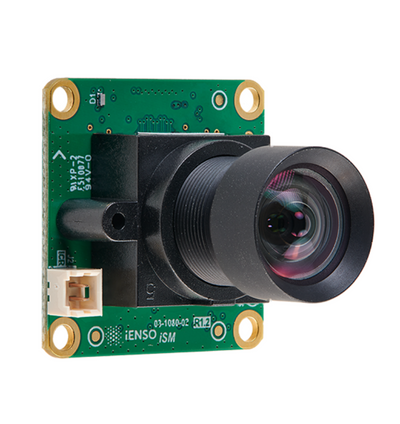

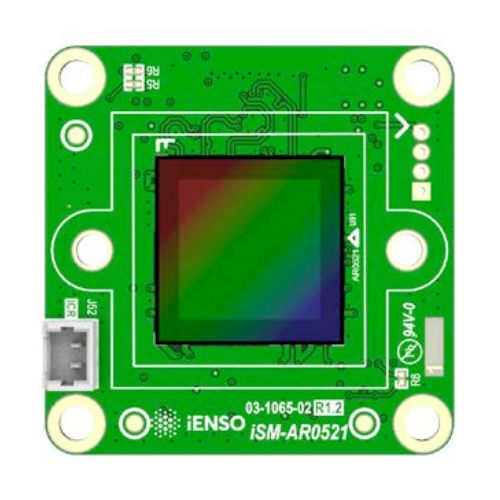

Product image of iENSO ISM-AR0521
Product Photos
Product image of  iENSO ISM-AR0521

Quick Info for the iENSO ISM-AR0521

Camera Category: Board Level
Camera Series: Embedded Vision Systems
FPS: 30
Interface: MIPI
Manufacturer: iENSO
Resolutions: 2592 x 1944
Scanning Mode: -
Signal System: Color / Monochrome
