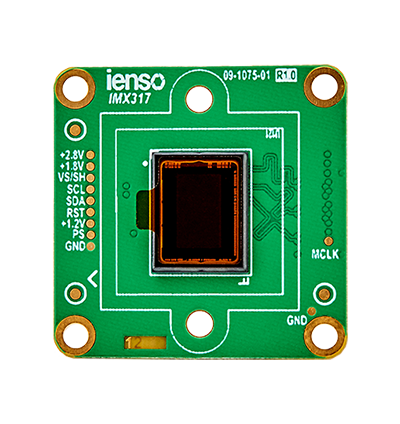

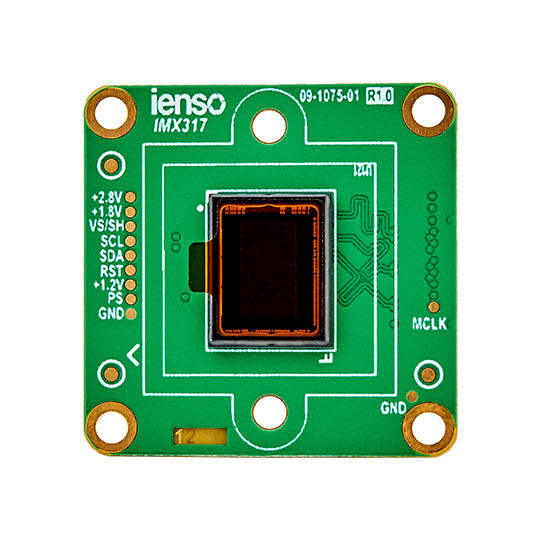

iENSO ISM-IMX317 Camera

The iENSOISM-IMX317 is the quality leader MIPI sensor module that adapt to iENSO’sembedded ecosystem of SOMs, camera modules, and wireless connectivity modules.

The ISM-IMX317 uses SONY’s IMX317 CMOS sensor, with advanced technologies, including Digital Overlap High Dynamic Range to output brilliant colors and Scalable Low Voltage Signaling Embedded Clock for high speed and multi-stream output.

The SONY IMX317 sensor features a type 1/2.5” color CMOS with 8.3M effective pixel to achieve true 4K UHD resolution with digital overlap HDR technology and it’s suitable for various iENSOlens types.

Download Product PDF:

• iENSO ISM-IMX317 Camera

TECHNICAL INFORMATION:

• Framerate: 32.8 fps 4K UHD at 12 bits (62.5 fps at 10 bits) over 4-lane MIPI CSI-2 10/12-bit interface.
• Pixel details: 1.62 μm, 3840 x 2160 array (16:9), ExmorR / STARVIS BSI, DOL-HDR, rolling shutter.
• Package/Environmental: ceramic LGA with 92 pins, -10°C to 60°C sensor ambient operating temperature.
