The AWV3-SOM is part of iENSO’s modular ecosystem of SOMs, camera modules, and wireless connectivity modules. The AWV3 SOM can be used with our Sony, OmniVision , or OnSemi camera modules. The modular approach allows the addition of our wireless connectivity modules to build an IoT edge device camera with 3GPP compliant communication using LTE Cat 1 or Cat M1 modems.

Download Product PDF:

TECHNICAL INFORMATION:

  • CPU: ARM Cortex™-A7, up to 1.2 GHz clock rate, low power consumption
  • Video Engine: 1080p60 H.264/JPEG codec, capable of up to 70 fps FHD.
  • OS: Linux or Allwinner Camdroid OS (Android-lite, NOR flash capable)
  • Camera interfaces: 4-lane MIPI CSI2, 8/10/12-bit parallel, BT1120
  • ISP: 2 channels in/out, Integrated HawkView® ISP with AE/AF/AWB
  • Image corrections: defects, shading, color, noise
  • Display out: RGB/i80/LVDS LCD up to 1024x768 resolution

Request a Quote

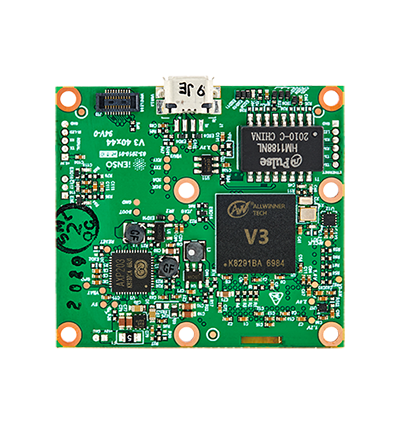

Product image of iENSO iSOM AWV3
Product Photos

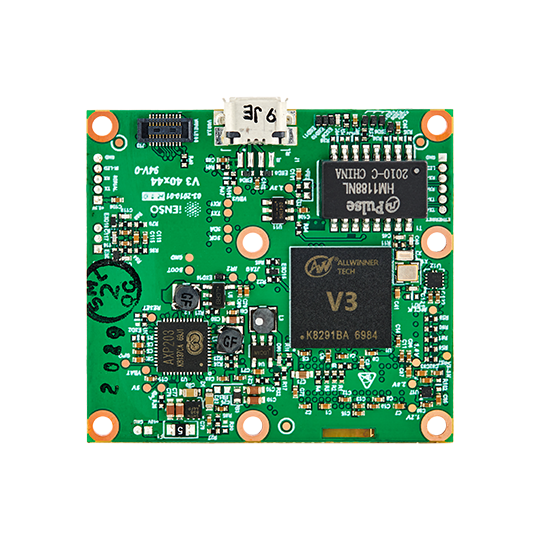

Product image of  iENSO iSOM AWV3

Quick Info for the iENSO iSOM AWV3

Camera Category: Board Level
Camera Series: MIPI
FPS: 70
Interface: MIPI
Manufacturer: iENSO
Resolutions: 1024 x 768
Signal System: Color / Monochrome
