The Apex AP-1600T-USB is a 3-CMOS prism-based industrial R-G-B area scan camera providing better color fidelity and spatial precision than traditional Bayer color cameras. The camera is built around the PregiusTM IMX273 1/2.9-inch sensor featuring 1456 x 1088 pixels and pixel sizes of 3.45 µm x 3.45 µm. The USB3 Vision interface offers excellent plug and play compatibility while delivering 3 x 1.6 megapixels at nearly 79 frames/second.

The camera can be optionally ordered with the IR-cut filter removed (AP-1600T-USB-NF) for applications needing extended sensitivity in the red/NIR channel. It is loaded with a range of advanced features and functions supporting the most challenging color imaging applications in machine vision, life sciences, and industrial microscopy.

  • 3-CMOS prism-based RGB camera.
  • 3 x IMX273 Sony Pregius sensors.
  • True raw image data (Red, Green and Blue). Also available with IR-cut filter removed (AP-1600T-USB-NF) for extended sensitivity in the red/NIR channel.
  • USB3 Vision interface.
  • Analog gain and exposure setting for each individual R-G-B channel.
  • Flexible color space conversion.
  • Single and Multi-Region-of-Interest (ROI).
  • Automatic level control.
  • Shading correction on ROI.
  • Color temperature presets.
  • Built-in color enhancer and edge enhancer functions.
  • Pixel binning (2x1, 1x2 and 2x2).
  • Chunk data for each image.
  • Compatible with Image-Pro and Micro-Manager software packages for integration with digital microscopy applications.
  • Robust and compact design (Shock 50G/Vibration 3G).

Download Product PDF:

TECHNICAL INFORMATION:

  • Product Line: Apex Series
  • Model: AP-1600T-USB
  • Type: Area Scan
  • Color / Mono: Color
  • Light Spectrum: Visible + NIR
  • Resolution: 1.6 MP
  • Resolution WxH: 1456 x 1088 px
  • Frame rate / Line rate: 79 fps
  • ROI: Yes
  • Interface: USB3 Vision (PoUSB)
  • Sensors: 3xCMOS RGB
  • Sensor Name: IMX273
  • Optical Format: 1/2.9 inch
  • Cell Size WxH: 3.45 x 3.45 µm
  • Shutter type: Global shutter
  • Sensor Diagonal: 6.3 mm
  • Active Sensor Dimensions WxH: 5.0 x 3.8 mm
  • Camera Dimensions HxWxL: 44 x 44 x 74 mm
  • Weight: 170 g
  • Video Output: 8/10/12-bit *
  • Lens Mount: C-mount
  • Power Consumption: 5.30 Watt
  • Operating Temperature (ambient): -5°C to +45°C


* Some video processing functions not available with 12-bit output

Request a Quote

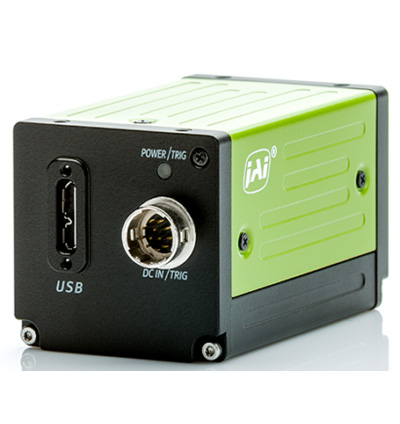

Product image of JAI AP-1600T-USB

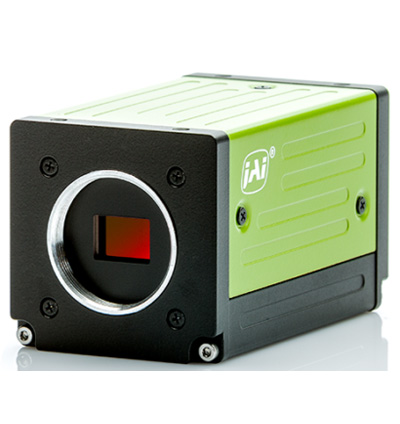

Product image of JAI AP-1600T-USB
Product Photos
Product image of JAI AP-1600T-USB Product image of JAI AP-1600T-USB

Quick Info for the JAI AP-1600T-USB

Camera Category: Area Scan
Camera Series: Apex
FPS: 79
Interface: USB3 Vision
Manufacturer: JAI
Resolutions: 1456 x 1088
Scanning Mode: Area Scan
Signal System: Color
Technology: USB3 Vision Cameras
