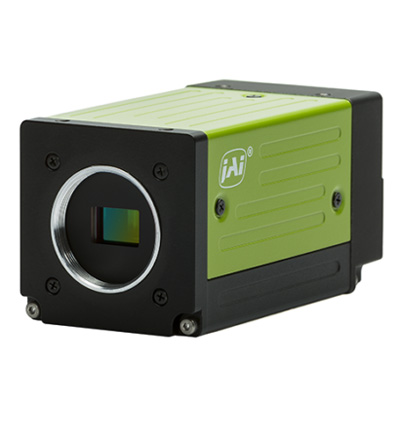

The Apex AP-3200T-PGE is a 3-CMOS prism-based industrial R-G-B area scan camera delivering 3 x 3.2 megapixels at 12 frames/second. It provides better color fidelity and spatial resolution than traditional Bayer color cameras and is designed for color-critical imaging and inspection tasks in machine vision, life science and microscopy applications.
- 3-CMOS prism-based RGB camera.
- 3 x IMX265 Sony Pregius sensors.
- True raw image data (Red, Green and Blue).
- GigE Vision interface.
- Analog gain and exposure setting for each individual R-G-B channel.
- Flexible color space conversion.
- Single and Multi-Region-of-Interest (ROI).
- Automatic level control.
- Shading correction on ROI.
- Color temperature presets.
- Color enhancer tool.
- Edge enhancer tool.
- Pixel binning (2x1, 1x2 and 2x2).
- Chunk data for each image.
- Robust and compact design (Shock 50G/Vibration 3G).
Download Product PDF:
TECHNICAL INFORMATION:
- Product Line: Apex Series
- Model: AP-3200T-PGE
- Type: Area Scan
- Color / Mono: Color
- Light Spectrum: Visible
- Resolution: 3.2 MP
- Resolution WxH: 2064 x 1544 px
- Frame rate / Line rate: 12 fps
- ROI: Yes

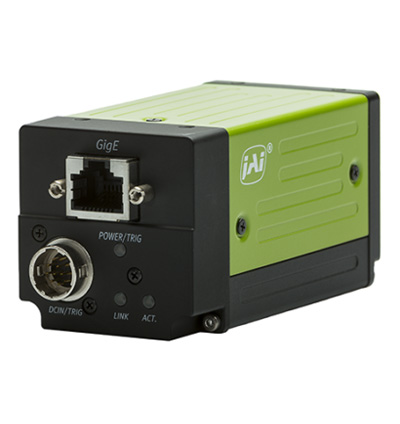

- Interface: GigE Vision 1-Cable (PoE)
- Sensors: 3xCMOS RGB
- Sensor Name: IMX265
- Optical Format: 1/1.8 inch
- Cell Size WxH: 3.45 x 3.45 µm
- Shutter type: Global shutter
- Sensor Diagonal: 8.9 mm
- Active Sensor Dimensions WxH: 7.1 x 5.3 mm
- Camera Dimensions HxWxL: 44 x 44 x 84 mm
- Weight: 200 g
- Video Output; 8/10/12-bit *
- Lens Mount: C-mount
- Power Consumption: 7.50 Watt
- Operating Temperature (ambient): -5°C to +45°C
* Some video processing functions not available with 12-bit output
