The Apex AP-3200T-PMCL is a 3-CMOS prism-based industrial R-G-B area scan camera delivering 3 x 3.2 megapixels at 55 frames/second. It provides better color fidelity and spatial resolution than traditional Bayer color cameras and is designed for color-critical imaging and inspection tasks in machine vision, life science and microscopy applications.

  • 3-CMOS prism-based RGB camera.
  • 3 x IMX265 Sony Pregius sensors.
  • True raw image data (Red, Green and Blue).
  • MiniCamera Link interface.
  • Analog gain and exposure setting for each individual R-G-B channel.
  • Flexible color space conversion.
  • Single and Multi-Region-of-Interest (ROI).
  • Automatic level control.
  • Shading correction on ROI.
  • Color temperature presets.
  • Color enhancer tool.
  • Edge enhancer tool.
  • Pixel binning (2x1, 1x2 and 2x2).
  • Chunk data for each image.
  • Robust and compact design (Shock 50G/Vibration 3G).

Download Product PDF:

TECHNICAL INFORMATION:

  • Product Line: Apex Series
  • Model: AP-3200T-PMCL
  • Type: Area Scan
  • Color / Mono: Color
  • Light Spectrum: Visible
  • Resolution: 3.2 MP
  • Resolution WxH: 2064 x 1544 px
  • Frame rate / Line rate: 55 fps
  • ROI: Yes
  • Interface: Mini Camera Link (PoCL)
  • Sensors: 3xCMOS RGB
  • Sensor Name: IMX265
  • Optical Format: 1/1.8 inch
  • Cell Size WxH: 3.45 x 3.45 µm
  • Shutter type: Global shutter
  • Sensor Diagonal: 8.9 mm
  • Active Sensor Dimensions WxH: 7.1 x 5.3 mm
  • Camera Dimensions HxWxL: 44 x 44 x 74 mm
  • Weight: 170 g
  • Video Output: 8/10/12-bit *
  • Lens Mount: C-mount
  • Power Consumption: 6.00 Watt
  • Operating Temperature (ambient): -5°C to +45°C

* Some video processing functions not available with 12-bit output

Request a Quote

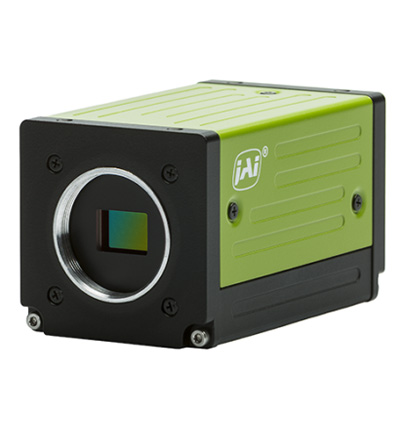

Product image of JAI AP-3200T-PMCL

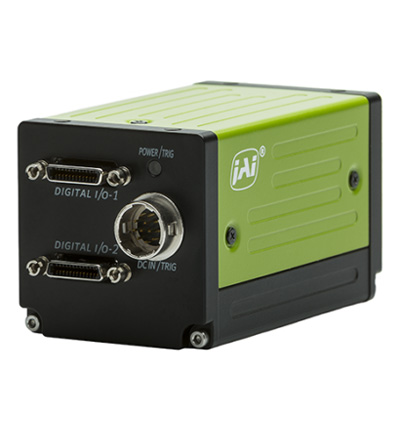

Product image of JAI AP-3200T-PMCL
Product Photos
Product image of  JAI AP-3200T-PMCL Product image of  JAI AP-3200T-PMCL

Quick Info for the JAI AP-3200T-PMCL

Camera Category: Area Scan
Camera Series: Apex
FPS: 55
Interface: Mini Camera Link
Manufacturer: JAI
Resolutions: 2064 x 1544
Scanning Mode: Area Scan
Signal System: Color
