The Apex AP-3200T-USB-LS is a 3-CMOS prism-based R-G-B area scan camera intended for microscopy applications in the medical and life sciences markets. The multi-sensor prism technology provides better color fidelity and spatial precision than traditional Bayer color cameras, while the USB3 Vision interface offers excellent plug and play compatibility.

The camera is built around the PregiusTM IMX265 1/1.8-inch sensor featuring 2064 x 1544 pixels and pixel sizes of 3.45 µm x 3.45 µm. A standard C-mount can be easily adapted to most types of digital microscopes or can be used with a variety of standard or telecentric lenses in larger systems.

The camera can be optionally ordered with the IR-cut filter removed (AP-3200T-USB-NF-LS) for applications needing extended sensitivity in the red/NIR channel. Drivers/device adapters are available for the popular ImagePro software from Media Cybernetics (sold separately), as well as for the open source Micro-Manager software package.

  • 3-CMOS prism-based RGB camera.
  • 3 x IMX265 Sony Pregius sensors.
  • True raw image data (Red, Green and Blue). Also available with IR-cut filter removed (AP-3200T-USB-NF-LS) for extended sensitivity in the red/NIR channel.
  • USB3 Vision interface
  • Analog gain and exposure setting for each individual R-G-B channel.
  • Flexible color space conversion from raw RGB to sRGB, Adobe RGB, HSI, CIE XYZ, or custom RGB formats.
  • Single and Multi-Region-of-Interest (ROI).
  • Automatic level control.
  • Shading correction on ROI.
  • Color temperature presets.
  • Built-in color enhancer and edge enhancer functions.
  • Pixel binning (2x1, 1x2 and 2x2).
  • Chunk data for each image.
  • Compatible with Image-Pro and Micro-Manager software packages.
  • White housing with robust and compact design (Shock 50G/Vibration 3G).

Download Product PDF:

TECHNICAL INFORMATION:

  • Product Line: Apex Microscopy Solutions
  • Model: AP-3200T-USB-LS
  • Type: Area Scan
  • Color / Mono: Color
  • Light Spectrum: Visible + NIR
  • Resolution: 3.2 MP
  • Resolution WxH: 2064 x 1544 px
  • Frame rate / Line rate: 38 fps
  • ROI: Yes
  • Interface: USB3 Vision (PoUSB)
  • Sensors: 3xCMOS RGB
  • Sensor Name: IMX265
  • Optical Format: 1/1.8 inch
  • Cell Size WxH: 3.45 x 3.45 µm
  • Shutter type: Global shutter
  • Sensor Diagonal: 8.9 mm
  • Active Sensor Dimensions WxH: 7.1 x 5.3 mm
  • Camera Dimensions HxWxL: 44 x 44 x 74 mm
  • Weight: 170 g
  • Video Output: 8/10/12-bit *
  • Lens Mount: C-mount
  • Power Consumption: 5.30 Watt
  • Operating Temperature (ambient): -5°C to +45°C

* Some video processing functions not available with 12-bit output

Request a Quote

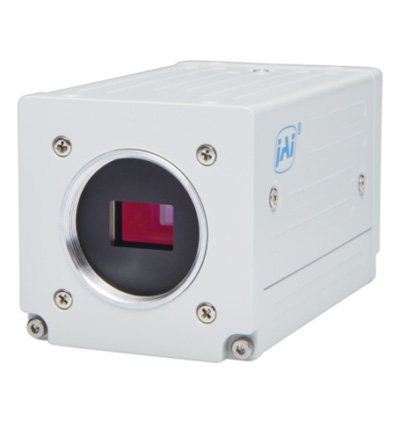

Product image of JAI AP-3200T-USB-LS

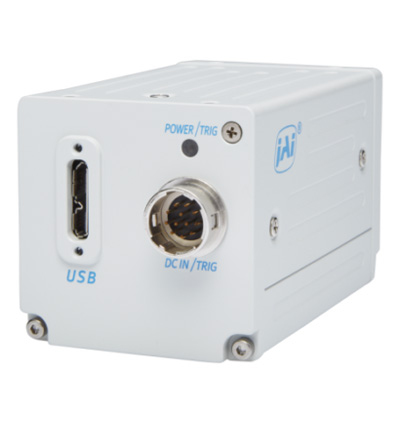

Product image of JAI AP-3200T-USB-LS
Product Photos
Product image of  JAI AP-3200T-USB-LS Product image of  JAI AP-3200T-USB-LS

Quick Info for the JAI AP-3200T-USB-LS

Camera Category: Area Scan
Camera Series: Apex
FPS: 38
Interface: USB3 Vision
Manufacturer: JAI
Resolutions: 2064 x 1544
Scanning Mode: Area Scan
Signal System: Color
