JAI AT-200 Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the JAI AT-200

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Available Variations:

  • AT-200CL

  • AT-200GE

The AT-200CL takes 3CCD color technology to the next level.

A newly developed prism-block assembly supports three 1/1.8-inch CCDs to provide higher resolution and better light gathering ability than earlier 3CCD camera models.

The three ICX274AL CCDs deliver 1620 x 1236 pixels of resolution per channel, while JAI's patented manufacturing process ensures alignment precision to within one quarter pixel for the best image quality in the industry.

The AT-200CL operates at 20 frames per second at full resolution, with partial scan and binning modes available for even higher frame rates. A wide range of pre-set and programmable shutter and exposure modes are provided to support diverse application requirements.

Dual Camera Link interfaces let users choose between 8, 10, or 12-bit output per channel using a Camera Link base or medium configuration, as required. With full 36-bit RGB color output possible, no progressive scan 3CCD camera offers higher color fidelity.

With its high image quality, the camera is well suited for a wide range of inspection applications within the printing industry, electronics & semiconductor manufacturing as well as for biomedical screening/classification.

Dimensions (HxWxL): 55 x 55 x 98 mm

FEATURES:

  • 2-megapixel 3CCD RGB color camera
  • 1/1.8" progressive scan
  • 1620 x 1236 active pixels per color channel
  • 4.40 µm square pixels
  • 20 fps at full resolution
  • Patented prism-block alignment process for high image fidelity
  • 24, 30, or 36-bit Camera Link output
  • One-push white balance, programmable color matrix, and other advanced features

Download Product PDF:

TECHNICAL INFORMATION:

  • Sensor: 3 x 1/1.8” progressive scan CCD - ICX274AL
  • Pixel Clock: 50 MHz
  • Frame rate full frame: 20.31 frames/second (1236 lines per frame)
  • Active area: 7.16 (h) x 5.43 (v) mm
  • Cell size: 4.40 (h) x 4.40 (v) μm
  • Active pixels: 1628 (h) x 1236 (v)
  • Read-out modes -
    Full: 1628 (h) x 1236 (v) 20.31 fps
    2/3 partial scan: 1628 (h) x 825 (v) 28.42 fps
    1/2 partial scan: 1628 (h) x 621 (v) 35.27 fps
    1/4 partial scan: 1628 (h) x 311 (v) 55.896 fps
    1/8 partial scan: 1628 (h) x 155 (v) 79.23 fps
    Variable partial: Programmable start line & height, 1 to 1236L
    Vertical binning: 1628 (h) x 618 (v) 35.93 fps
  • Sensitivity (on sensor): 1.0 Lux, max gain, 50% video
  • S/N ratio: >50 dB. (Green ch., 0 dB gain)
  • Video output-
    3 x 8 bit RGB: single port Camera Link base
    3 x 10 bit RGB: dual port Camera Link medium
    3 x 12 bit RGB: dual port Camera Link medium
  • Auto-iris lens video: 0.7 V p-p, 75 NUM luminance signal w/o sync
  • Gain, Manual-
    Manual for all 3 colors
    Master -3 to +12 dB
    R and B –6 to +6 dB
  • Synchronization: Int. X-tal
  • Trigger modes: Continuous, Edge Pre-Select, Pulse Width Control, Reset Continuous
  • Operating Temperature: -50 C to +450C
  • Humidity (operation: 20 - 80% non-condensing
  • Shock: 50G
  • Lens mount: C-mount (Max 4.0 mm thread)
  • Dimensions (H x W x L): 55(H) x 55(W) x 98.3(L) mm
  • Weight: 320g

Request a Quote

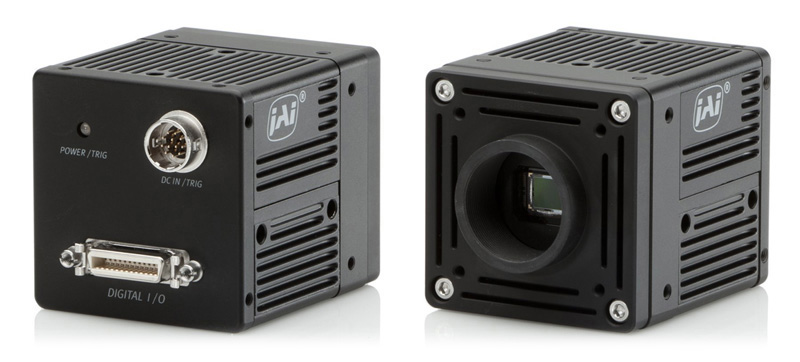

Product image of JAI AT-200
Product Photos

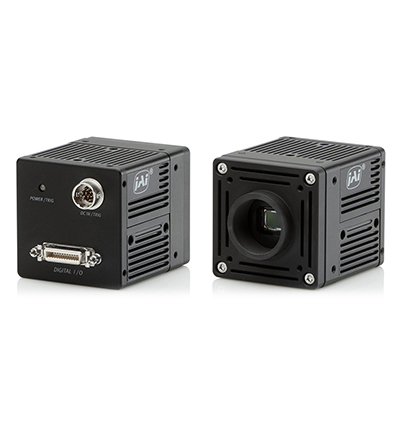

Product image of  JAI AT-200

Quick Info for the JAI AT-200CL

Camera Category: Area Scan
Camera Series: Apex
FPS: 20
Interface: Camera Link
Manufacturer: JAI
Resolutions: 1 MP
Scanning Mode: -
Signal System: Color

Quick Info for the JAI AT-200GE

Camera Category: Area Scan
Camera Series: Apex
FPS: 15
Interface: GigE
Manufacturer: JAI
Resolutions: 1 MP
Scanning Mode: Progressive Scan
Signal System: Color
