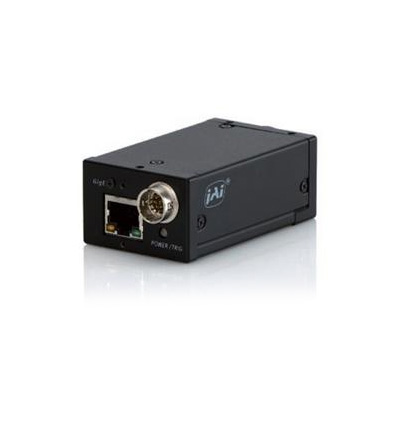

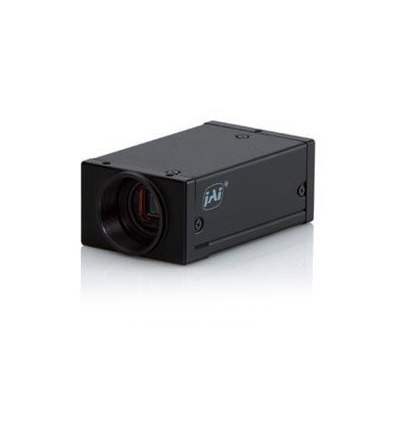

JAI CB-140 Camera

The CB-140GE is a Bayer mosaic color progressive scan camera with 1.4 million pixels resolution and GigE Vision interface.

The camera outputs 31 full frames/second in continuous (free-run) mode and up to 30 frames/second in external trigger modes. Higher frame rates can be achieved by using the Partial Scan or Vertical binning modes.

The unique sequencer function makes it possible to change exposure time, gain and ROI on the fly.

The programmable GPIO allows flexible configuration of inputs/outputs as well as the timer/counter function.

The CB-140GE is available with a factory-installed Right Angle Adapter. The adapter enables the camera to “look” at a 90º angle and is designed for a range of inspection tasks where physical access on production lines is limited.

FEATURES:

• C3 Compact series
• 1/2” Bayer mosaic color progressive scan camera
• 1392 (h) x 1040 (v) pixels
• 4.65µm square pixels
• 31 frames/second with full resolution
• Partial scan
• Unique sequencer function
• Programmable GPIO
• GigE Vision interface

Download Product PDF:

• JAI CB-140 Camera

TECHNICAL INFORMATION:

• Sensor: 1/2” progressive scan
• Pixel Clock: 65 MHz
• Frame rate full frame: 31.08 frames/second (1052 lines per frame)
• Active area: 6.4 (h) x 4.8 (v) mm
• Cell size: 4.65 x 4.65 pixels
• Active pixels:1392 x 1040
• Color (CB-140 GE): Raw Bayer output, host based interpolation
• Read-out modes -
  Full: 1392 (h) x 1040 (v) 31.08 fps
  1/2 partial scan: 1392 (h) x 520(v) 46.57 fps
  1/4 partial scan: 1392 (h) x 260 (v) 61.92 fps
  1/8 partial scan: 1392 (h) x 130 (v) 73.97 fps
  2/3 partial scan: 1392 (h) x 694 (v) 39.97 fps
  Vertical binning: 1392 (h) x 520 (v) 48.86 fps (CM-140 GE only)
• Sensitivity (CM-140 GE): 0.3 Lux (On sensor, max. gain, shutter off, 50% video)
• Sensitivity (CB-140 GE): 1.6 Lux (On sensor, max. gain, shutter off, 50% video)
• S/N ratio: >50dB (0dB gain)
• Video output: GigE Vision, 8-bit or 10-bit
• Auto-iris lens video output: 0.7 Vp-p, enabled by internal switch
• Gain: Manual, -3 to +12 dB
• Synchronization: External hardware trigger via GPIO Software trigger via GigE Vision
• Hardware trigger modes: Continuous, Pre-Select, Pulse Width, Sequence (Gain, Shutter, ROI) Reset-continous trigger, Delay Readout
• Operating Temperature: -5°C to +45°C
• Power: 12V DC +/-10%. 3.5W
• Lens mount: C-mount
• Dimensions (H x W x L): 29 x 44 x 75 mm
• Weight: 125 g
