JAI CB-200 Camera

Need Help Finding the Best Camera for Your Solution? Call (631) 254-2600
Request a Quote

Get a Quote for the JAI CB-200

Please fill out the form below to request a quote. Fields marked with * are required.

I am interested in:
First Name: *
Last Name: *
Company: *
Telephone:
Extension:
Email: *
Comments:

Available Variations:

  • CB-200GE

  • CB-200MCL

  • CB-200PMCL

The CB-200GE is a Bayer mosaic color progressive scan camera with 2 million pixels resolution and GigE Vision interface.

The camera outputs 25 full frames/second in continuous (free-run) mode and up to 24 frames/second in external trigger modes. Higher frame rates can be achieved by using the Partial Scan or Vertical binning modes.

The unique sequencer function makes it possible to change exposure time, gain and ROI on the fly.

The programmable GPIO allows flexible configuration of inputs/outputs as well as the timer/counter function.

Dimensions (HxWxL): 29 x 44 x 75 mm.

The CB-200GE is available with a factory-installed Right Angle Adapter. The adapter enables the camera to “look” at a 90º angle and is designed for a range of inspection tasks where physical access on production lines is limited.

FEATURES:

  • C3 Compact series
  • 1/1.8” Bayer mosaic color progressive scan camera
  • 1620 (h) x 1236 (v) active pixels
  • 4.4 µm square pixels
  • 25 frames/second with full resolution
  • Partial scan
  • Unique sequencer function
  • Programmable GPIO
  • GigE Vision interface

Download Product PDF:

TECHNICAL INFORMATION:

  • Sensor: 1/1.8” CCD
  • Pixel Clock: 65 MHz
  • Frame rate full frame: 25 frames/second
  • Active area: 7.13 (h) x 5.37 (v) mm
  • Cell size: 4.4 x 4.4 µm
  • Active pixels:1624 (h) x 1236 (v)
  • Color (CB-200 GE): Raw Bayer output, host based interpolation
  • Read-out modes -
    Full: 1624 (h) x 1236 (v) 25 fps
    1/2 partial scan: 1624 (h) x 616 (v) 43.82 fps
    1/4 partial scan: 1624 (h) x 308 (v) 69.59 fps
    1/8 partial scan: 1624 (h) x 156 (v) 97.96 fps
    2/3 partial scan: 1624 (h) x 824 (v) 35.07 fps
    Vertical binning: 1624 (h) x 627 (v) 44.49 fps* (CM-200 GE only)
  • Sensitivity (CM-200 GE): 0.21 Lux (On sensor, max. gain, shutter off, 50% video)
  • Sensitivity (CB-200 GE): 0.7 Lux (On sensor, max. gain, shutter off, 50% video)
  • S/N ratio: >50 dB(0 dB gain)
  • Video output: GigE Vision, 8-bit or 10-bit
  • Auto-iris lens video output: 0.7 Vp-p, enabled by internal switch
  • Gain: Manual/Automatic -3dB to +12 dB
  • Synchronization: Internal X-tal, External hardware trigger via GPIO Software trigger via GigE Vision
  • Trigger modes: Continuous, Pre-Select Pulse Width, Sequence (Gain, Shutter, ROI), Delayed Readout
  • Operating Temperature: -5°C to +45°C
  • Power: 12V DC +/-10%. 4.2W
  • Lens mount: C-mount
  • Dimensions (H x W x L): 29 x 44 x 75 mm
  • Weight: 125g

Request a Quote

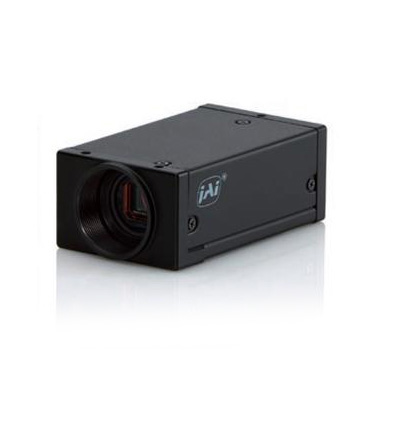

Product image of JAI CB-200
