JAI CM-200 Camera
Get a Quote for the JAI CM-200
Please fill out the form below to request a quote. Fields marked with * are required.
Available Variations:
CM-200GE
CM-200MCL
CM-200PMCL

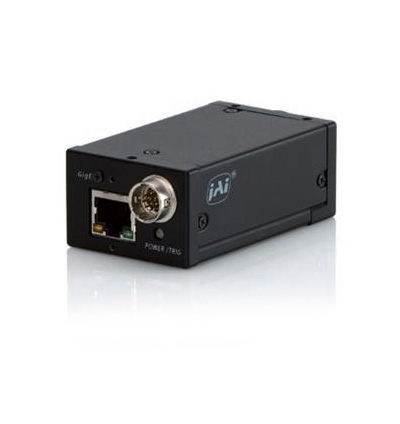

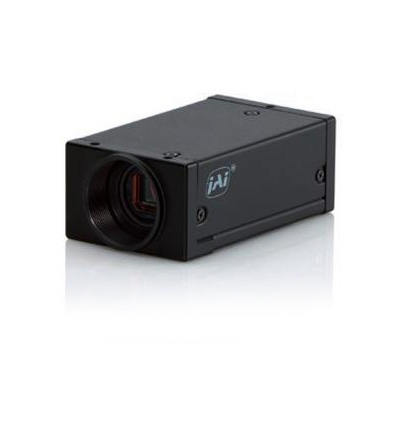

The CM-200GE is a monochrome progressive scan camera with 2 million pixels resolution and GigE Vision interface
The camera outputs 25 full frames/second in continuous (free-run) mode and up to 24 frames/second in external trigger modes. Higher frame rates can be achieved by using the Partial Scan or Vertical binning modes.
The unique sequencer function makes it possible to change exposure time, gain and ROI on the fly.
The programmable GPIO allows flexible configuration of inputs/outputs as well as the timer/counter function Dimensions (HxWxL): 29 x 44 x 75 mm.
The CM-200GE is available with a factory-installed Right Angle Adapter. The adapter enables the camera to “look” at a 90º angle and is designed for a range of inspection tasks where physical access on production lines is limited.
FEATURES:
- C3 Compact series
- 1/1.8” monochrome progressive scan camera
- 1620 (h) x 1236 (v) active pixels
- 4.4 µm square pixels
- 25 frames/second with full resolution
- Partial scan and vertical binning
- Unique sequencer function
- Programmable GPIO
- GigE Vision interface
Download Product PDF:
TECHNICAL INFORMATION:
- Sensor: 1/1.8” CCD
- Pixel Clock: 65 MHz
- Frame rate full frame: 25 frames/second
- Active area: 7.13 (h) x 5.37 (v) mm
- Cell size: 4.4 x 4.4 µm
- Active pixels:1624 (h) x 1236 (v)
- Color (CB-200 GE): Raw Bayer output, host based interpolation
- Read-out modes -
Full: 1624 (h) x 1236 (v) 25 fps
1/2 partial scan: 1624 (h) x 616 (v) 43.82 fps
1/4 partial scan: 1624 (h) x 308 (v) 69.59 fps
1/8 partial scan: 1624 (h) x 156 (v) 97.96 fps
2/3 partial scan: 1624 (h) x 824 (v) 35.07 fps
Vertical binning: 1624 (h) x 627 (v) 44.49 fps* (CM-200 GE only) - Sensitivity (CM-200 GE): 0.21 Lux (On sensor, max. gain, shutter off, 50% video)
- Sensitivity (CB-200 GE): 0.7 Lux (On sensor, max. gain, shutter off, 50% video)
- S/N ratio: >50 dB(0 dB gain)
- Video output: GigE Vision, 8-bit or 10-bit
- Auto-iris lens video output: 0.7 Vp-p, enabled by internal switch
- Gain: Manual/Automatic -3dB to +12 dB
- Synchronization: Internal X-tal, External hardware trigger via GPIO Software trigger via GigE Vision
- Trigger modes: Continuous, Pre-Select Pulse Width, Sequence (Gain, Shutter, ROI), Delayed Readout
- Operating Temperature: -5°C to +45°C
- Power: 12V DC +/-10%. 4.2W
- Lens mount: C-mount
- Dimensions (H x W x L): 29 x 44 x 75 mm
- Weight: 125g
