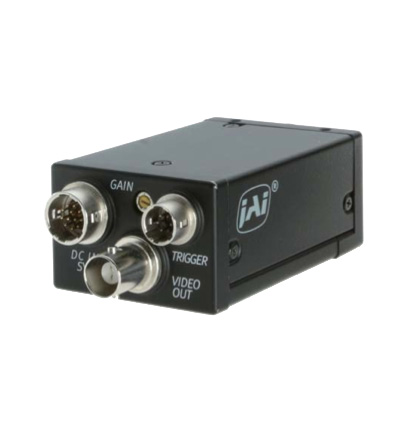

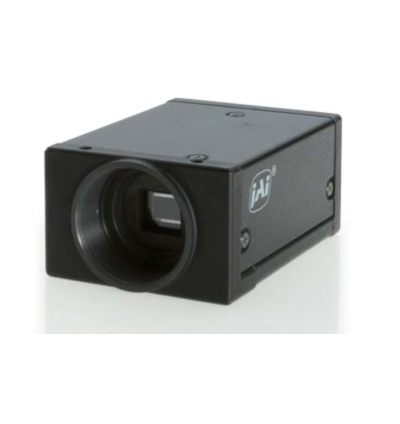

JAI CV-A1 Camera

The CV-A1 is a perfect fit for volume OEMs and high level system integrators

The CV-A1 megapixel camera has a resolution of 1380 x 1035 and footprint of merely 44 x 66 mm (width x length) and height of 29 mm.

The CV-A1 boasts a long list of new functions and features, including RS 232C control of all settings of the camera and a number of new trigger modes and readout modes. The target market for this camera family is volume OEMs (Original Equipment Manufacturers) and high level System Integrators for Automated Imaging applications (e.g. industrial/medical equipment).

A special UV enhanced, CV-A1 UV, as well as a slower scan version, CV-A1-20, is also available.

Dimensions (HxWxD): 29 x 44 x 66 mm

FEATURES:

• 1/2" monochrome progresive scan
• 1380 x 1035 active pixels
• 16 full frames/sec.
• Several trigger modes
• Partial scan and binning
• Frame-delay readout
• RS 232C control
• Analog interface

Download Product PDF:

• JAI CV-A1 Camera

TECHNICAL INFORMATION:

• Sensor: 1/2” progressive scan
• Pixel Clock: 28.64 MHz
• Frame rate full frame: 16.037 frames/second (1068 lines per frame)
• Active area: 6.4 (h) x 4.8 (v) mm
• Cell size: 4.65 x 4.65 pixels
• Active pixels:1380 x 1035
• Read-out modes -
  Full: 1380 (h) x 1035 (v) 16 fps
  1/2 partial scan: 1380 (h) x 513(v) 30 fps
  1/3 partial scan: 1380 (h) x 341 (v) 43 fps
  1/6 partial scan: 1380 (h) x 171 (v) 75 fps
  Horizontal binning: 690 (h) x 1035 (v) 16 fps
  Vertical binning: 1380 (h) x 527 (v) 32 fps
  H + V binning: 690 (h) x 527 (v) 32 fps
  Smear-less: Smear reduction
  Frame-delay readout: For multi-camera read-out
• Sensitivity (CV-A1):0.3 Lux (On sensor, max. gain, shutter off, 50% video)
• S/N ratio: >50dB (0dB gain)
• Video output: Composite VS signal, 1Vp-p, 75O Video signal, 0,7Vp-p (selectable)
• Gain: Manual, -3 to +12 dB Automatic, 0 to +12dB
• Synchronization: Int. X-tal, Ext. HD/VD or random trigger
• Trigger modes: Continuous, EPS (Edge Pre-Select), PWC (Pulse Width Control), Long time exposure, Smear reduction and Frame-delay readout
• Operating Temperature: -5°C to +45°C
• Power: 12V DC +/-10%. 1.8W
• Lens mount: C-mount
• Dimensions (H x W x L): 29 x 44 x 66 mm
• Weight: 150g
