Imagine eyes that can both scrutinize a surface and penetrate beneath. That’s what the AD-080CL can do.

Simultaneous, separate imaging of visible and NIR light through a single lens.

Think practical benefits. No more awkward 2-camera solutions. No more struggling to align images to the quarter-pixel level that the AD-080CL achieves with rock-solid reliability.

Think cost advantage. One camera doing the work of two. A smarter investment for any simultaneous above&below surface application.

The more you think about the AD-080CL, the more attractive it becomes. Whether you’re inspecting currency and checks, or textiles and circuit boards, or fruit and vegetables.

The camera outputs 30 full frames/second in continuous (free-run) mode.

Higher frame rates can be achieved by using the Partial Scan or Vertical binning modes.

Several trigger modes are also available allowing random capture of individual images.

FEATURES:

  • Multi-spectral 2-channel CCD camera
  • Advanced series 2 x 1/3” progressive scan camera
  • Simultaneously captures Visible and Near-IR through the same optical path
  • 1024 (h) x 768 (v) active pixels per channel
  • 4.65 µm square pixels
  • 30 frames/second with full resolution
  • Increased frame rate with partial scan
  • Programmable exposure from 20µs to 33ms
  • Pre-select and Pulse width trigger modes
  • LVAL Synchronous/-asynchronous operation (auto-detect)
  • Auto-iris lens video output allows a wider range of light
  • RGB 24-bit or Raw Bayer 10 or 8-bit output for visible
  • 10 or 8-bit output for Near-IR
  • Setup by Windows NT/2000/XP via serial communication

Download Product PDF:

TECHNICAL INFORMATION:

  • Sensor
    Visible: 1/3” color Bayer mosaic IT CCD
    Near-IR: 1/3” Monochrome interline transfer CCD
  • Pixel Clock: 33.75 MHz
  • Frame rate full frame: 30 frames/sec.
  • Active area: 4.76 (h) x 3.57 (v) mm
  • Cell size: 4.65 (h) x 4.65 (v) µm
  • Active pixels: 1024 (h) x 768 (v)
  • Color visible: Raw Bayer output, or RGB 24-bit
  • Read-out modes -
    Full: 1024 (h) x 768 (v) 30 fps
    1/2 partial scan: 1024 (h) x 384 (v) 48 fps
    1/4 partial scan: 1024 (h) x 192 (v) 68 fps
    1/8 partial scan 1024 (h) x 96 (v) 86 fps
  • Sensitivity Visible: 1.4 Lux (On sensor, max. gain, shutter off, 50% video)
  • Sensitivity Near-IR: 0,1µW/cm2 at 800nm (On sensor, max. gain, shutter off, 50% video)
  • S/N ratio: >54dB (Gain 0 dB, shutter off)
  • Video output -
    Visible: 24-bits RGB or raw Bayer output
    Near-IR: 8 or 10 bit
  • Auto-iris lens video: 0.7 Vp-p
  • Gain: -3dB to +12dB
  • Synchronization: Int. X-tal or ext. trigger
  • Inputs -
    Camera Link: Ext. trigger, LVDS, (CC 1)
    TTL: Ext. Trigger 4V ±2V
  • Outputs -
    Camera Link: Clk., FVAL, LVAL, Data, EEN
    TTL: XEEN
  • Trigger modes: Pre Select, Pulse Width
  • Operating Temperature: -5°C to +45°C
  • Power: 12V DC ± 10%. 4 W
  • Lens mount: C-mount
  • Dimensions (H x W x L): 55(H) x 55(W) x 80(D) mm
  • Weight: 400 g

Request a Quote

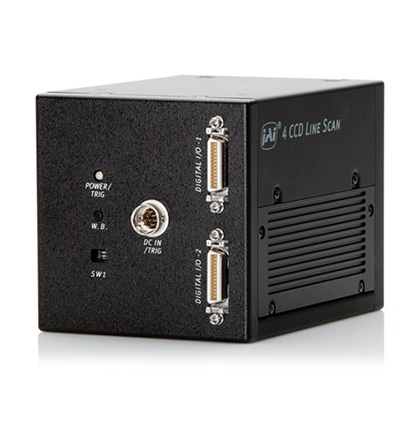

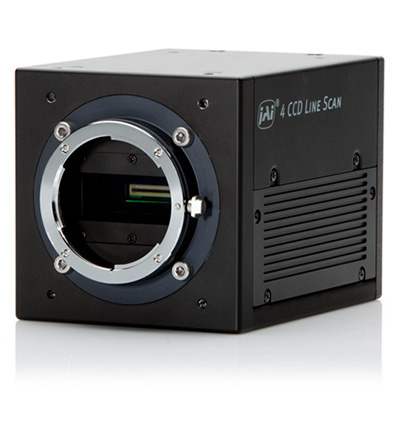

Product image of JAI AD-08
Product image of JAI AD-08
