JAI GO-5100-PGE – 5.1-megapixels with 2/3” format

The GO-5100-PGE  camera provides 5-megapixel resolution with a 2/3" optical format for wider lens choices than 1" cameras. Featuring a Sony Pregius IMX250 CMOS imager with 3.45-micron pixels, the GO-5100-PGE is an excellent replacement camera for customers with older 2/3" 5-megapixel CCD cameras interested in moving up to a higher performance CMOS alternative.

The GO-5100-PGE boasts exceptionally low noise and a standard dynamic range of more than 60 dB. Its global shutter offers an exposure range from 14 µs to 8 seconds (27 µs minimum in 10-bit/12-bit modes) and has extremely low shutter leakage (-94 dB) for outstanding image quality regardless of exposure time or lighting conditions.

Like other Go Series cameras, the GO-5100-PGE is built to perform in industrial environments with an MTBF rating of more than 200,000 hours. Despite its small size (see dimensions below) and weight (46 grams), the GO-5100-PGE carries an 80G shock rating, 10G vibration rating, and a standard operating temperature range of -5°C to +45°C.

A long list of standard features includes single ROI capability, as well as on-sensor multi-ROI capability supporting up to 64 separate ROIs. There's also support for asymmetrical 1x2, 2x1, or 2x2 binning (monochrome model), a user programmable look-up table for gamma customization, ALC (integrated auto gain and auto shutter), delayed readout for multi-camera applications, sequence trigger with up to 128 indexes and two operating modes, auto white balance (color model), pixel blemish compensation, and block-based shading correction.

Download Product PDF:

TECHNICAL INFORMATION:

  • Go Series
  • 5-megapixel 2/3” CMOS imager (global shutter)
  • Up to 22.7 fps at full resolution
  • 3.45 µm square pixels
  • Small size (29 x 29 x 41.5 mm, excluding lens mount)
  • 8/10-bit output in choice of monochrome or raw Bayer color models (12-bit output available in video process bypass mode)
  • Exposure control from 14 µs to 8 seconds in 1 µs steps
  • 2X binning for increased speed and sensitivity (monochrome only)
  • Single and multi-ROI modes for flexible windowing and use of smaller optics
  • Automatic Level Control (ALC) for dynamic lighting conditions
  • Accepts power over GigE Vision interface or separate 6-pin connector
  • High reliability: MTBF > 200,000 hours
  • C-mount lens mount

Request a Quote

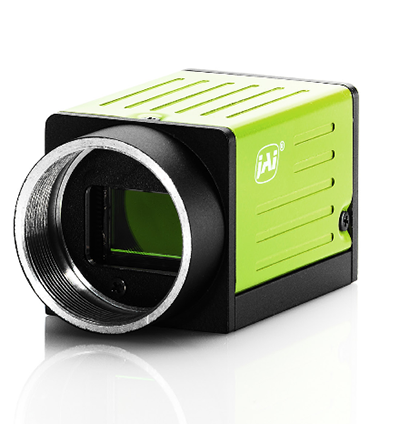

Product image of JAI GO-5100-PGE

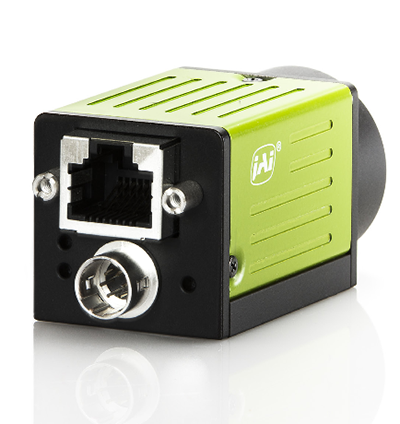

Product image of JAI GO-5100-PGE
Product Photos
Product image of  JAI GO-5100-PGE Product image of  JAI GO-5100-PGE

Quick Info for the JAI GO-5100C-PGE

Camera Category: Industrial
Camera Series: Go
FPS: 22
Interface: GigE
Manufacturer: JAI
Resolutions: 5 MP
Scanning Mode: -
Signal System: Color

Quick Info for the JAI GO-5100M-PGE

Camera Category: Industrial
Camera Series: Go
FPS: 22
Interface: GigE
Manufacturer: JAI
Resolutions: 5 MP
Scanning Mode: -
Signal System: Monochrome
