The RM-675NIR provides users with a 1/2" format interlaced camera with sensitivity equal to or greater than many 2/3" cameras.

The Sony ICX429AL CCD imager offers superior light gathering ability due to its advanced micro lens technology and its extended sensitivity in the near-infrared (NIR) portion of the spectrum.

An integrated lens controller enables users to remotely operate motorized lenses, pan & tilt heads, or any 3 external control channels. The single 15-pin connector is used for power, camera control, and video output, making installation clean and simple. All camera features are controllable via RS-232 commands over this single interface cable.

Designed with small size and ruggedness in mind, the camera is suitable for a wide range of industrial, defense, and homeland security applications. Advanced options include Auto Level Control (ALC) to automatically adjust gain and shutter settings during changing light conditions; conformal coating; pixel blemish compensation; and extended temperature capability for operating in temperatures from -40 degrees C to +65 degrees C.

Dimensions (H x W x L): 32 x 42 x 48 mm


  • Monochrome Interlace
  • 1/2” interlaced camera with extended NIR sensitivity
  • 752 x 582 resolution @ 25 fps (CCIR)
  • Micro, rugged construction
  • Shutter from 1/60 to 1/100,000 sec.
  • RS-232 adjustable manual gain, selectable ALC modes (optional) , shutter, gamma and field/frame select
  • External sync in
  • Mount positionable on all four sides
  • Single 15 D-sub connector for video, RS-232 and power
  • Mirror Image, Horizontal-enable/disable capability
  • 3-axis control for lens control or pan/tilt
  • High sensitivity option for low light applications

Download Product PDF:


  • Sensor: 1/2” NIR interlace CCD ICX429AL
  • Active pixels: 752 (H) x 582 (V)
  • Chip size: 7.4 x 5.95 mm
  • Cell size: 8.6 μm x 8.3 μm
  • Scanning: 625 lines / 50 Hz
  • TV resolution: 560 (H) x 420 (V)
  • S/N ratio: >53 dB min. (AGC Off)
  • Sensitivity: 0.10 lux (f=1.4)
  • Video output: 1.0 Vp-p composite video, 75
  • Gamma: 0.45 / 1.0 (RS-232 controlled) 1.0 Factory Default
  • Lens mount: C-mount (adjustable)
  • Storage temperature: -50° C to +70° C
  • Vibration: 7 Grms (20 Hz to 2000 Hz) Random
  • Dimensions (H x W x L):
    32 x 42 x 48.48 mm with mechanical enclosure
    29.3 x 39.4 x 35.66 mm without mechanical enclosure
  • Weight:
    113 g with mechanical enclosure
    69 g without mechanical enclosure

Request a Quote

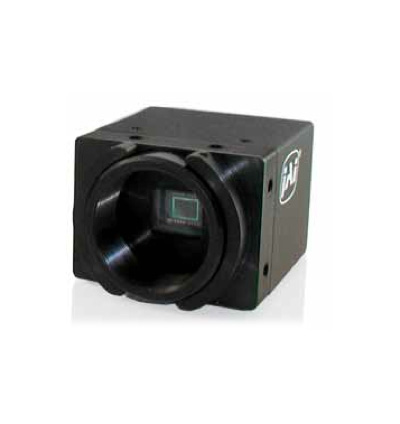

Product image of JAI RM-675NIR

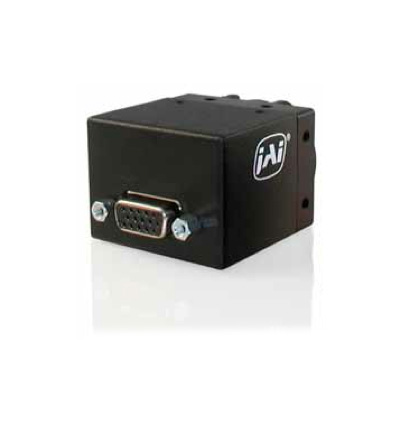

Product image of JAI RM-675NIR
Product Photos
Product image of  JAI RM-675NIR Product image of  JAI RM-675NIR

Quick Info for the JAI RM-675NIR

Camera Category: Area Scan
Camera Series: RM
FPS: 25
Interface: Analog
Manufacturer: JAI
Resolutions: Under 1 MP
Scanning Mode: Interlace
Signal System: NIR
