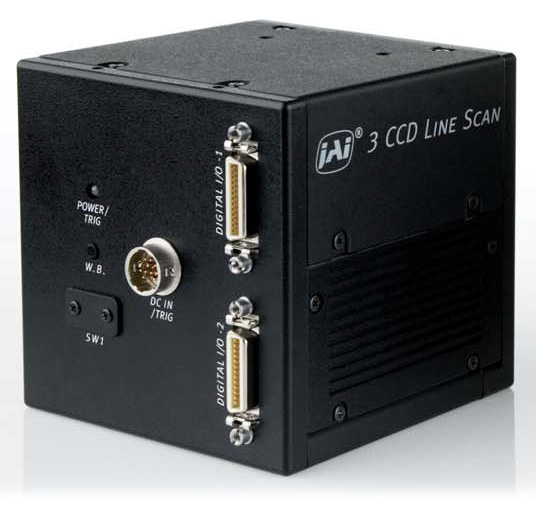

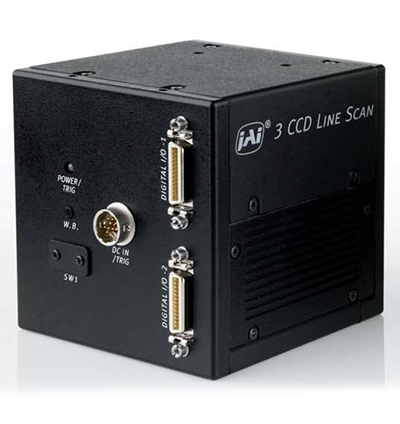

JAI CV-L107CL Camera

The CV-L107CL is a 3CCD, prism based color line scan camera that targets industrial inspection applications.

The CV-L107CL is designed for high speed applications. It can be used for print verification, surface quality inspection, food/fruit sorting and other similar applications. The CV-L107CL operates with 40 MHz pixel frequency, which results in a scan rate of just above 19kHz. The camera delivers 24 or 30 bit digital RGB output via a standard Camera Link interface. It features flat-field (two point) correction, shading correction, several trigger modes, and individual exposure on R, B and G channels.

Dimensions (HxWxL): 90 x 90 x 90 mm

FEATURES:

• 3CCD color line scan
• Dichroic RGB beam splitter prism
• 2048 pixels per color
• 19kHz scan rate
• Camera Link interface
• Pixel and shading correction

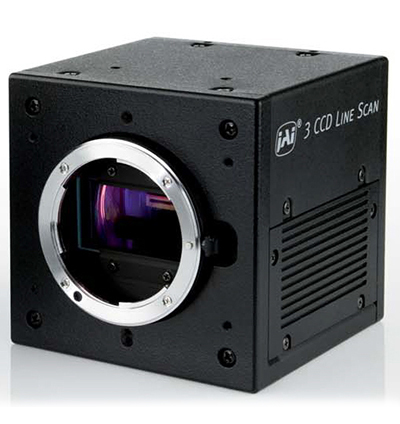

• Nikon F-mount lens mount

Download Product PDF:

• JAI CV-L107CL Camera

TECHNICAL INFORMATION:

• Scanning system: Line sensor with internal clock
• Pixel clock: 40.00 MHz
• Scan rate: Max. 19048 lines/second (2100 pixels per line)
• Sensor: 3 line sensors mounted on RGB beam splitter prism
• Sensor scanning width: 28.7 mm
• Cell size: 14 (h) x 14 (v) µm
• Active pixels: 3 x 2048 (h) 3 x 1024 (h) with 2:1 binning
• Sensitivity: 7.5 mV/nJ/cm2 (Gain 0 dB, 525 µs exp., 100% video on G)
• S/N ratio: 58 dB on green with gain = -3 dB
• Video output: 24 bit in CL base configuration 30 bit in CL medium configuration
• Gain: Master (G). -3 dB to +12 dB R and B. -9 dB to +9 dB
• Synchronization: Internal X-tal or external trigger
• Trigger modes: No-shutter, shutter-select and pulse width control
• Operating Temperature: -5°C to +45°C
• Power: 12V DC ± 10%. 15 W
• Lens mount: Nikon F-mount. (Standard)
• Dimensions (H x W x L): 90 mm x 90 mm x 90 mm
• Weight: 860 g
