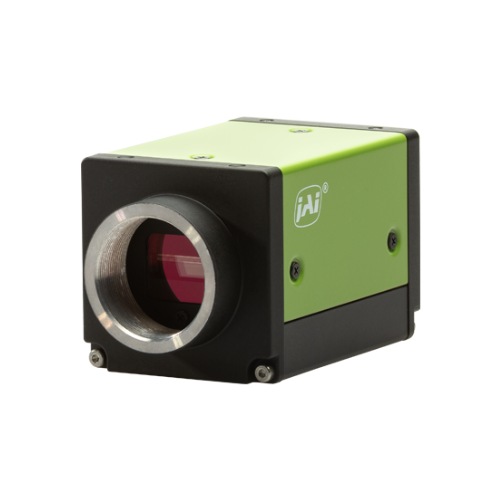

JAI SW-2005M-5GE Camera
The JAI Sweep SW-2005M-5GE is a compact and reliable CMOS monochrome line scan camera with 2K resolution. The camera features 7 µm x 7 µm pixels with a 5GBASE-T interface. With a maximum scan rate of 172 kHz, the camera can deliver a data throughput of up to 5 Gbps. It is ideal for applications like wood and print inspection, as well as other flexible web or rigid inspection applications. Additionally, it is well-suited for logistical tasks such as postal or barcode scanning.
TECHNICAL INFORMATION:
- 2K line scan resolution (2048 monochrome pixels).
- 14.336 mm wide sensor with 7 μm square pixels.
- Up to 172 kHz (172,000 lines/s) scan rate.
- High performance 5GBASE-T interface
- Direct connection to rotary encoders with resume scanning (via backward counter) and trigger delay function based on trigger counts.
- Trigger width exposure mode.
- Master and individual gain control.
- 8, 10 and 12 bit output formats.
- PRNU/DSNU, black level, shading.
- Standard C-mount.
- Horizontal binning.
- Excellent shock and vibration resistance.
Quick Info for the JAI SW-2005M-5GE
Camera Category: | Line Scan |
---|---|
Camera Series: | Sweep+ |
FPS: | 172 kHz |
Interface: | 5 GigE |
Manufacturer: | JAI |
Resolutions: | 1 x 2048 px |
Scanning Mode: | Line Scan |
Signal System: | Monochrome |
Technology: | GigE Cameras |
