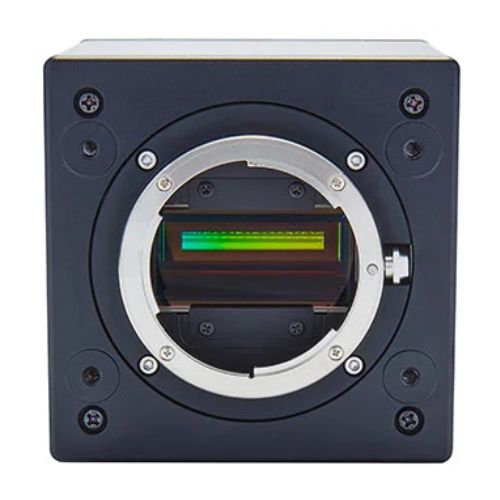

JAI SW-4000T-CXPA Camera

The SW-4000T-CXPA is a high-performance industrial camera featuring a CoaXPress CXP-12 interface for data transmission speeds up to 12.5 Gbps. Designed for high-speed imaging applications, it captures uncompressed RGB output at 97 kHz with exceptional color accuracy using a prism-based R-G-B system. Supporting 4K resolution with three CMOS sensors at 4096 pixels, it offers selectable pixel sizes of 7.5 μm x 7.5 μm or 7.5 μm x 10.5 μm. For compressed formats, YUV422_8 output is available at up to 73 kHz, optimizing data efficiency. The camera integrates vertical dual-line binning and 2x horizontal binning for improved sensitivity, while its CoaXPress 2.0 interface supports CXP-12, CXP-6, and CXP-3 configurations, allowing cable lengths of up to 100 meters for flexible deployment in industrial environments.

TECHNICAL INFORMATION:

• Prims-based R-G-B imaging for supreme color accuracy.
• 4K resolution (3 CMOS sensors x 4096 pixels).
• 7.5  μm x 7.5 μm or 7.5 μm x 10.5 μm pixels. (selectable)
• 97 kHz scan rate.
• Single CoaXPress 2.0 interface. CXP-12, CXP-6 or CXP-3.
• Vertical dual-line binning and 2 x horizontal binning.
• Versatile GPIO options.
• Direct connection to rotary encoders
• Built-in color space conversion.
• Region-of-interest (ROI).
